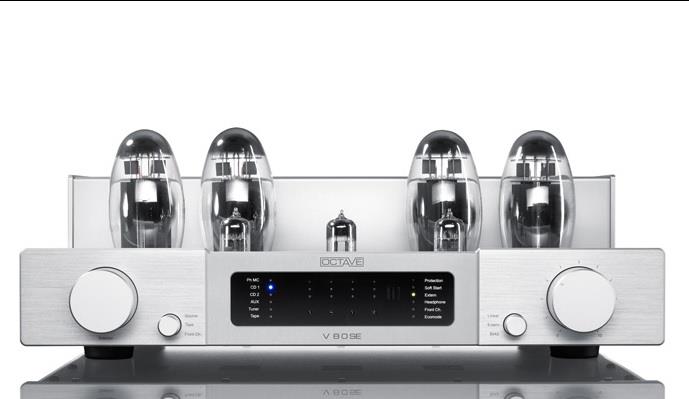

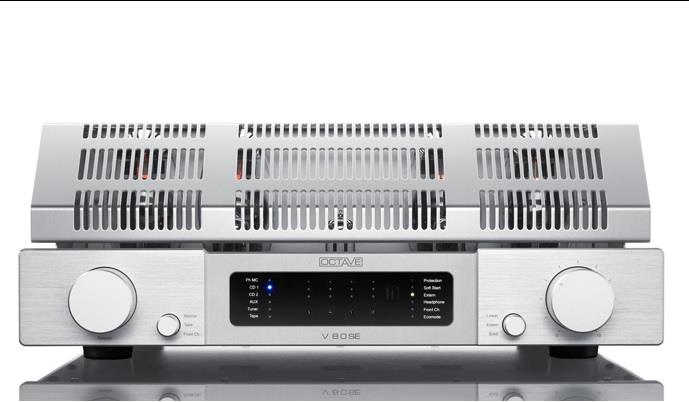

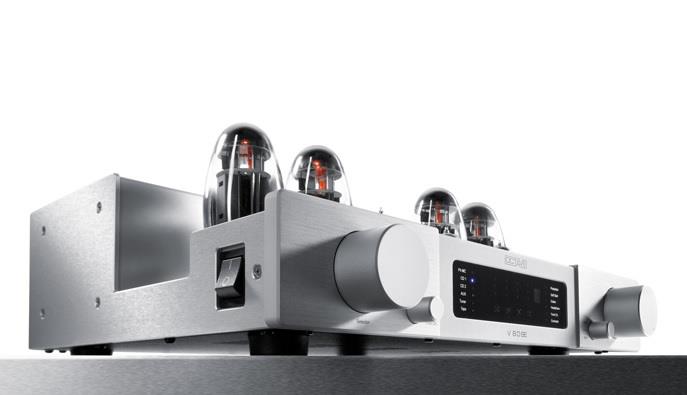

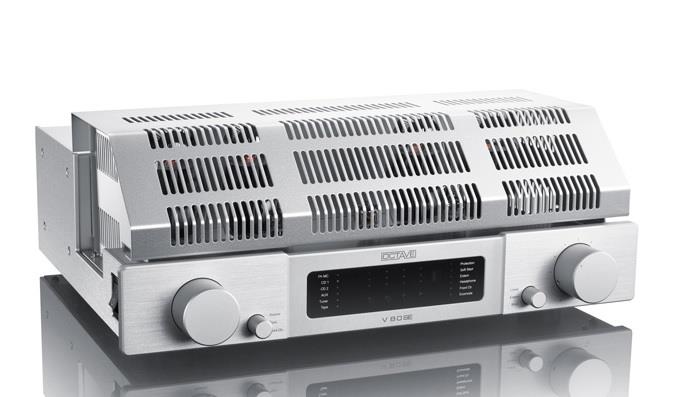

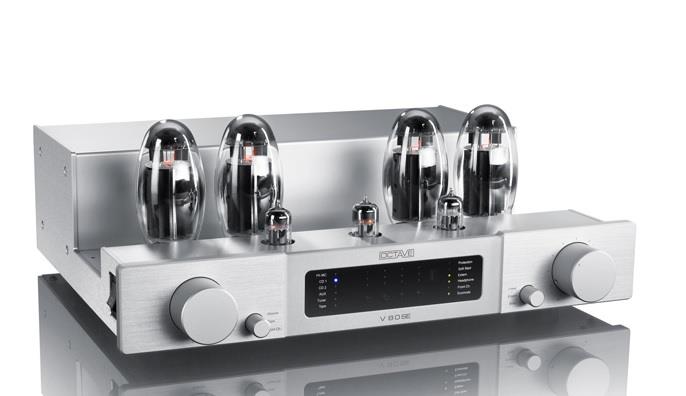

The all-new OCTAVE V 80 SE sets new benchmarks for quality and performance in the product category of integrated amplifiers. He is the crown of the Octave integrated amplifier range and shines with a completely new amplifier design. A new driver stage, upgraded output transformers, and a more sophisticated power transformer highlight the technical design, while a completely new feedback loop offers absolute stability. As a serious alternative to high end separate pre- and power-amplifier components, the V 80 SE is equipped with a wide variety of inputs, both RCA and XLR, and features full function preamp capabilities. A MM or MC phono board is optional. A connection for Octave's proprietary Black Box or Super Black Box power supply capacitance upgrade module is also included.
The V 80 SE is the only model in the Octave range with a headphone connector, and features a high-grade discrete headphone amplifier that offers very low distortion (<0.008% at 200 ohms) and uncompromised sound quality. It is also possible to integrate the V 80 SE into a Home Cinema system thanks to the Home Theater Bypass Circuit, which allows the V 80 SE to power the front channels of a high-quality multichannel system. Furthermore, the V 80 SE features Octave's innovative, power saving Ecomode circuit, which serves to reduce heat and unnecessary power consumption when the amplifier is switched on but not in use. The V 80 SE features Octave's innovative Power Management and Protection Systems. All Octave models are protected against any inrush-current during switch-on, and the operation voltage is built up slowly, which also serves to extend the lifespan of all parts – especially the tubes.
While the finish, build-quality and craftsmanship of the unit are easily recognized, the real fascination with the V 80 SE is the uncompromised sound quality and its incredible performance capabilities. The new amplifier design, optimized for the higher power KT 150 and KT 120 tubes, yields 130 watts per channel power output, allowing perfect control of virtually any loudspeaker – even at high sound pressure levels. Music will flow effortlessly as the amplifier performs with an unrivalled sense of ease, all while delivering precise control and inexhaustible dynamics.
In the midrange, the V 80 SE integrated amplifier remains natural and warm, while the high frequencies are accurately reproduced with all the nuanced fine details which make all the difference in high fidelity playback. This powerful yet elegant integrated amplifier conveys pure emotion and is the perfect partner for nearly every loudspeaker. With its incredible reliability, ease of operation, and innovative feature set, the V 80 SE delivers the highest level of performance for the most demanding music lovers.
» adjustable Pre-Out
» Preamplifier and Power Amplifier separable
» Headphone Output
» XLR-Input
» optional Phono MC-or MM- Input
» Ecomode / Automatic Power Saving

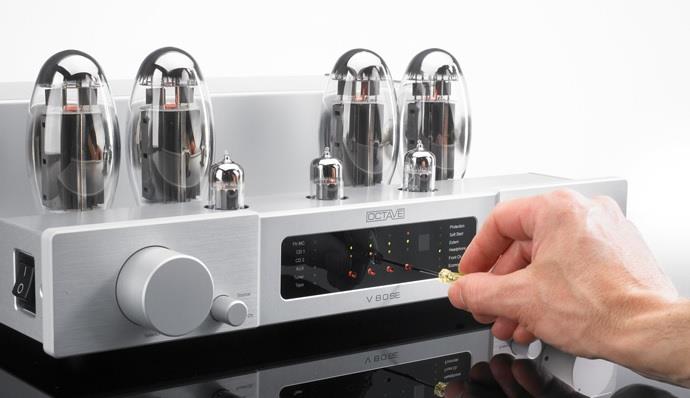

» BIAS-Measuring System for the Tube
» Comprehensive Protection- and Softstart-System: Power- Management
Basic Model : V 80 SE, optional Phono MM or MC

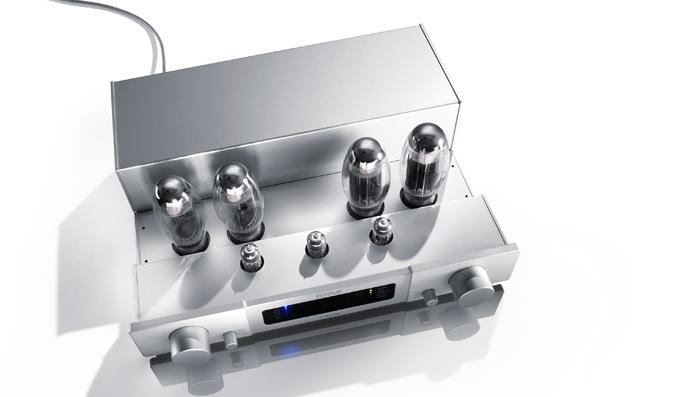

Tube Complement : 4 x KT150
Design : Aluminium silver or Aluminium black
Add On Modules : Black-Box and Super Black Box
Power Output : 2 x 130 W continuous, 150 W Peak into 4 Ohm
Frequency Response : 2 Hz - 80 kHz / ± 0,5 dB
Total Harmonic Distortion : < 0,1% @ 10 W into 4 Ohm
Signal-to-Noise Ratio : > 100 dB
Minimum Speaker Impedance : 2 Ohm

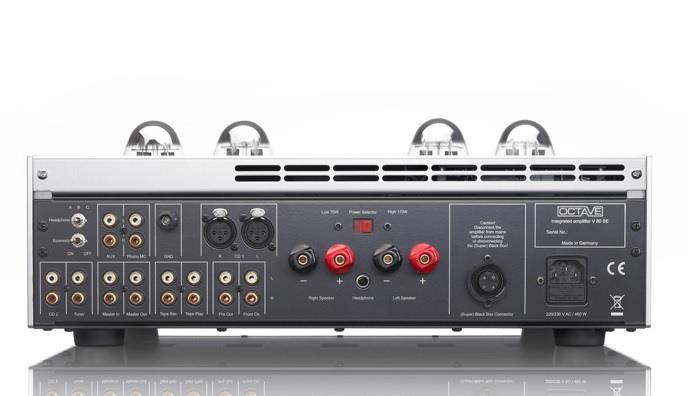

Connections :
1 x XLR Input
Outputs:1 x Rec
Pre-Out and Main-In, Master In and Master Out
Features : ECO Mode, Bias Adjustment, Power Management
Preamplifier
Input Sensitivity : 300 mV Cinch + XLR
Input Impedance : 40 kOhm Cinch; 25 kOhm XLR
Channel Balance : 0,5 dB bis - 70 dB from Volumeadjuster
Left/Right Crosstalk : 60 dB
Input to Input Crosstalk : - 105 dB
Gain Pre-Out : + 6 dB
Phono
Input Impedance : MC 500 Ohm, MM 47 kOhm
Signal-to-Noise Ratio : MC 75 dB, MM 90 dB
Input Sensitivity : MC 0.5 mV, MM 4 mV
Subsonic Filter : -12dB/ oct. 20Hz corner frequency
General Facts
Power Consumption : < 20 W Ecomode, 190 W idle, 400 W at full power
Weight : 23 kg
Standard Accessory : Power cord, 3 mm screwdriver, IR-Remote Control, Allen key for removing the cover
Main Fuse : 230/240 V Mains: 3,15 A slow-blow type H
