Home > AUDIO SOURCE > Amplifiers > Accustic Arts > Power Amp
> MONO II

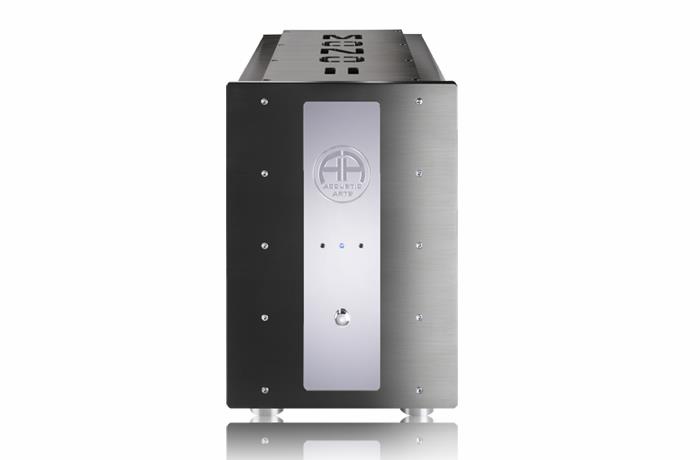

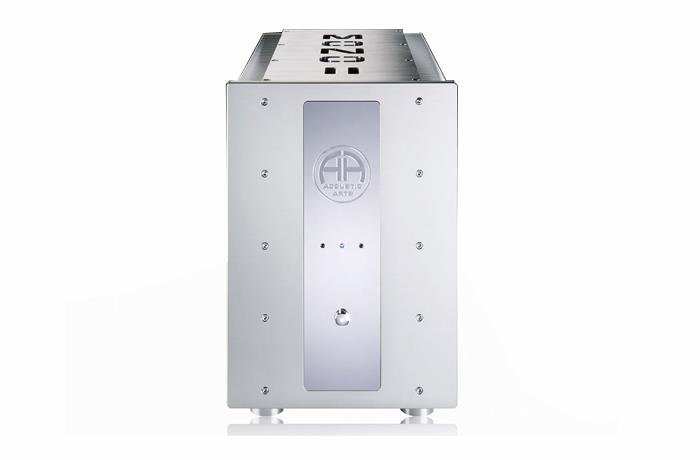

Reference class mono power amplifier
- 12 selected MOS-FET output transistors of finest quality
- Magnetically shielded and encapsulated toroidal core transformer of premium quality for highest output reserves
- Maximum total transformer power: 1200 VA (watts)
- Optimum smoothing thanks to more than 80,000 μF power supply capacity; Premium quality capacitors (“Made in Germany”)
- Very high damping factor for perfect speaker control
- Professional protective circuit against clipping, HF oscillations and too high DC offset
- Constant low operating temperature due to generously dimensioned heat sinks
- Balanced input (XLR) and unbalanced input (RCA) – the inputs are switchable on the rear panel
- All used parts and components are selected and of highest quality
- Premium quality, gold-plated bi-wiring / bi-amping speaker terminals
- Mains power switch on the front panel
- Extremely stable and resonance optimized, massive aluminium housing; inlay made of massive, high gloss polished and chromed brass
Voltage gain : 31.0 dB
Total transformer power : max. 1200 VA (watts)
Power supply capacity : more than 80,000 μF
Input impedance :
balanced (XLR): 2 x 20 kΩ
unbalanced (RCA): 100 kΩ
Rated power output :
max. 700 watts on 2 Ω
max. 500 watts on 4 Ω
max. 300 watts on 8 Ω
Rise time/fall time : 3.0 μs with 4 Ω load (square-wave 20 kHz, 12 Vpp)
Crosstalk: 111 dB with 1 kHz
Signal to noise ratio : -104 dBA (ref. 6.325 V)
Intermodulation distortion : 0.007 % with 10 watts on 4 Ω
Distortion factor (THD+N) : 0.0012 % on 4 Ω load with 1 kHz and 10 watts
Power consumption : approx. 100 watts (without load)
Dimensions (H x W x D) : 350 x 240 x 430 mm/13.8 x 9.4 x 16.9 inches
Weight : approx. 25 kg / 55 lbs. (depends on country)
Formats
CD Formats : Red Book
Audio Formats : WAV, AIFF, FLAC, ALAC, OGG Vorbis, AAC, Windows Media-formatted content files, MP3
Internet Radio Provider : vTuner
Disc Compatability : CD, CD-R, CD-RW
User Control
Front Panel : Touch-sensitive eject and shutdown mode function
TV Monitor : 4:3 and 16:9 customisable TV interface USB touch screen compatible
Web Interface : PC and Mac internet browser compatible Adobe Flash user interface
AMX Creston : Installer-customisable reference apps available
Handheld : User interface app for iPhone and iPod Touch devices
Streaming and Ripping
USB : Scan and play from FAT and NTFS formatted memory sticks
Network Shares : Scan and play from music stored on a network share
Network Storage : Rip to external network storage for expanded music storage
CD Metadata : AllMusic.com online, FreeDB online and local database
StreamNet : 6 user streams to NaimNet and NetStreams systems
Power
Supply Voltage : 100V-230V; 50 or 60Hz
Dimensions (HxWxD) : 87 x 207 x 314 mm
Weight : 4.2 kg
Supplied with : External power supply
Formats
CD Formats Red Book
Disc Compatability CD, CD-R
User Control
Front Panel Seven button matrix
Handheld R-Com
Power
Power Supply Options 555PS, 2 x 555PS
Upgrades
Power Supply 555 PS
Other NAC 252, 552 PS, NAP 500, 500 PS
Dimensions (HxWxD) 114 x 432 x 314 mm
Weight 20.2 kg
Supplied with Hi-Line, R-Com, Burndy x 2, Remote Control NARCOM 4, Clamp 6
