Home > AUDIO SOURCE > Amplifiers > Octave > Power Amp
> Jubilee power amp
After more than 20 years, we felt the time was right to explore the limits of power amplifier technology. And so the Jubilee monoblocs were born. Achieving the dream of producing a matching power amplifier for our highly regarded reference preamplifier demanded a completely new power amplifier design, an uncompromising approach to amplifier size, and a rigid insistence on the highest standards. The target of our ambition was to develop a tube amplifier with substantial power reserves and an exceptional performance. The result is an extraordinary product in both appearance and sound quality. The OCTAVE team has no reservations in claiming that the Jubilee series power amplifiers are indeed very, very close to the original objective of perfection.
... are the guarantors of a perfect sound.
The Jubilee monoblocs do not „make“ music; they retain the music – faithful to the highest standards of high fidelity according to the principle that nothing is more beautiful than the original.
... revolutionize tube amplifier technology.
A newly developed driver stage perfects the push-pull principle and results in unequalled load stability.
In combination with the high-capacity power supply, which is backed by a double transformer with full-wave rectification, the Jubilee monobloc amplifiers provide a pulse-power of 300 watts per channel at the output in the bandwidth of 20 Hz to 80kHz.
These unusual reserve capacities explain the brute dynamics as well as the superior performance of this singular tube power amplifier.
... represent a maximum of reliability.
The power management, soft-start of all tube functions and precise stabilization circuitry lead to perfect conditions that enable incredible reliability and longevity.
... play safe.
The power amplifiers are protected extensively from operator error or tube faults by the comprehensive safety electronic systems. In the rare case of a tube short circuit, the worst-case scenario results in a fuse de-energizing the power supply virtually instantaneously.
Tube Complement : 8 x 6550 C / 4 x ECC 82 je Endstufe..
Design : Aluminium silver or Aluminium black.. Center Front: 20 mm black Granit or grey Slate..
Power Output : 250 W into 4 Ohm
Frequency Response : 10 Hz - 80 kHz / ± 0,5 dB
Total Harmonic Distortion : < 0,1% bei 10 Watt into 4 Ohm
Signal-to-Noise Ratio : > 103 dB
Minimum Speaker Impedance : 2 Ohm
Gain/Input Sensitivity : + 30 dB / 1,5 V

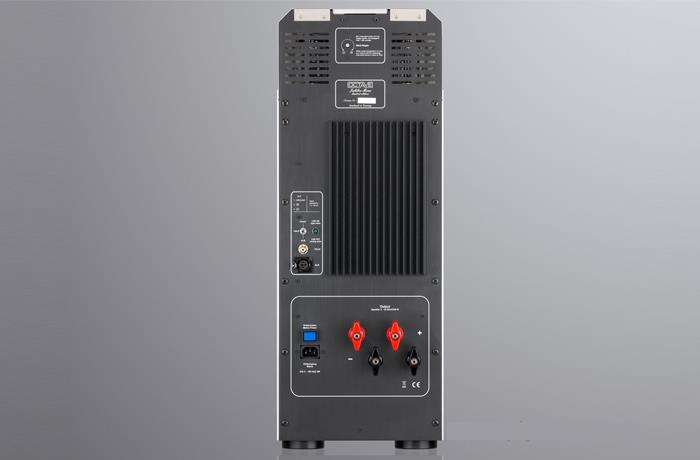

Connections
1 x RCA
1 x XLR Input
Features : ECO Mode, Bias Adjustment
General FactsPower Consumption : 320 Watt Leerlauf, 600 Watt at full power
Weight : 65 kg each Amplifier
Standard Accessory : Power cord,3 mm Screwdriver for BIAS Adjustment

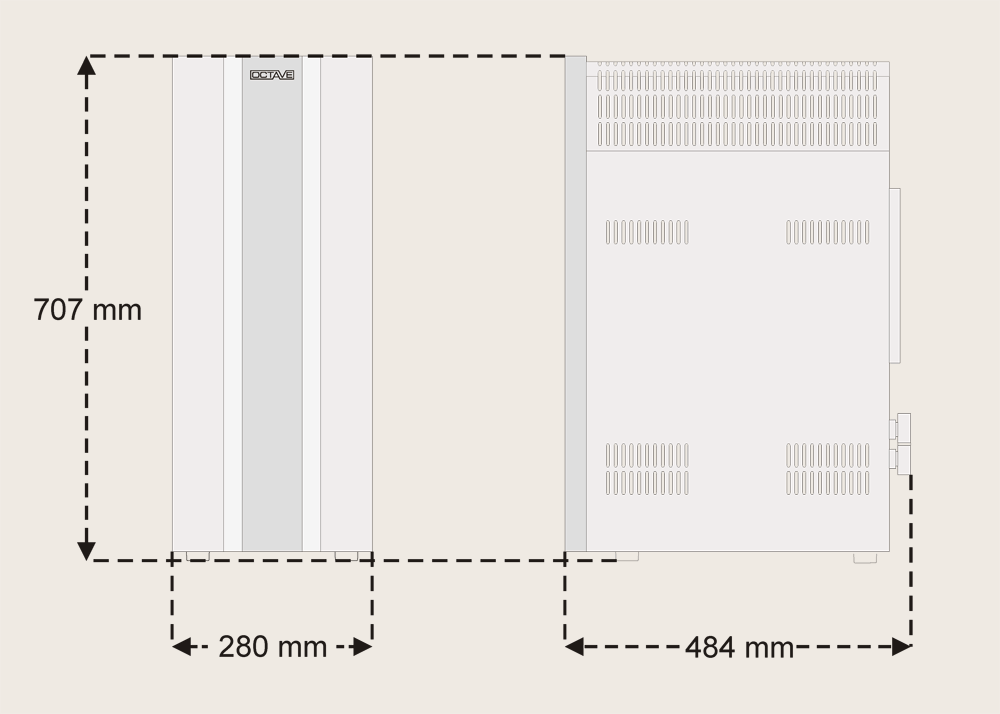

Dimensions : H x B x T = 707 mm x 280 mm x 484 mm
Formats
CD Formats : Red Book
Audio Formats : WAV, AIFF, FLAC, ALAC, OGG Vorbis, AAC, Windows Media-formatted content files, MP3
Internet Radio Provider : vTuner
Disc Compatability : CD, CD-R, CD-RW
User Control
Front Panel : Touch-sensitive eject and shutdown mode function
TV Monitor : 4:3 and 16:9 customisable TV interface USB touch screen compatible
Web Interface : PC and Mac internet browser compatible Adobe Flash user interface
AMX Creston : Installer-customisable reference apps available
Handheld : User interface app for iPhone and iPod Touch devices
Streaming and Ripping
USB : Scan and play from FAT and NTFS formatted memory sticks
Network Shares : Scan and play from music stored on a network share
Network Storage : Rip to external network storage for expanded music storage
CD Metadata : AllMusic.com online, FreeDB online and local database
StreamNet : 6 user streams to NaimNet and NetStreams systems
Power
Supply Voltage : 100V-230V; 50 or 60Hz
Dimensions (HxWxD) : 87 x 207 x 314 mm
Weight : 4.2 kg
Supplied with : External power supply
Formats
CD Formats Red Book
Disc Compatability CD, CD-R
User Control
Front Panel Seven button matrix
Handheld R-Com
Power
Power Supply Options 555PS, 2 x 555PS
Upgrades
Power Supply 555 PS
Other NAC 252, 552 PS, NAP 500, 500 PS
Dimensions (HxWxD) 114 x 432 x 314 mm
Weight 20.2 kg
Supplied with Hi-Line, R-Com, Burndy x 2, Remote Control NARCOM 4, Clamp 6
