Home > AUDIO SOURCE > Amplifiers > Accustic Arts > Power Amp

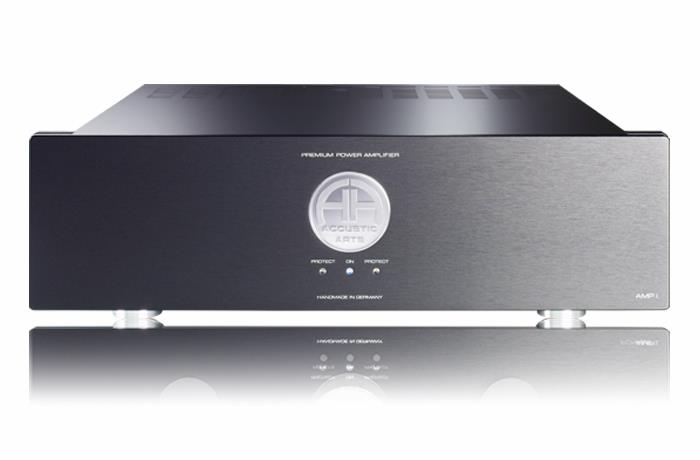

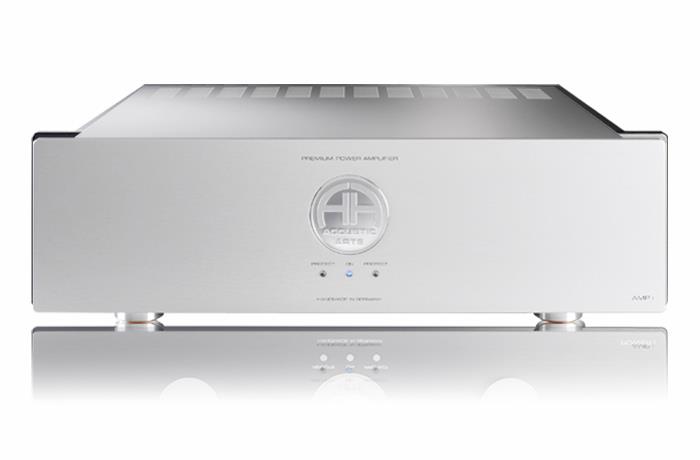

> AMP I MK2
Audiophile stereo power amplifier with high output performance; also
suitable for less efficient, impedance critical and low ohm loudspeaker
systems down to 2 Ω
- 8 selected MOS-FET output transistors of finest quality
- Magnetically shielded and encapsulated 600 VA toroidal core transformer for high output reserves; separate windings for right and left channel
- Very good smoothing thanks to more than 80.000 μF power supply
capacity; premium quality capacitors (“Made in Germany”) - High damping factor for perfect speaker control
- Integrated protective circuit switches ascents off when clipping,
HF oscillations or too high DC offset occurs - Constant low operating temperature due to generously dimensioned

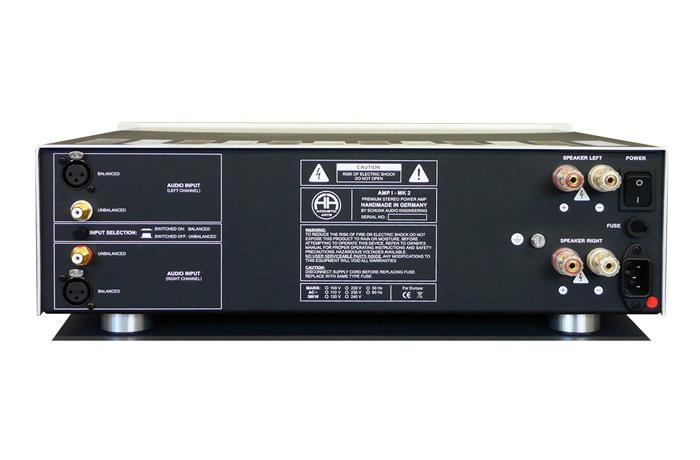

heat sink integrated in housing - Balanced input (XLR) and unbalanced input (RCA) – the inputs are
switchable - All used components and parts are selected and of highest quality
- Very high quality, gold-plated speaker terminals
- Full metal housing for optimum shielding
- Front panel made of brushed aluminium; inlay made of massive, chromed brass
- ACCUSTIC ARTS® AMP I - MK2 is „Handmade in Germany“
Voltage gain : 31.0 dB
Transformer power : approx. 600 VA (watts)
Power supply capacity : more than 80,000 μF
Input impedance :
balanced (XLR) : 2 x 20 kΩ
unbalanced (RCA) : 28 kΩ
Rated power output (THD+N = 0.1 %) :
2 x 210 watts on 4 Ω
2 x 140 watts on 8 Ω
Rise time / fall time : 3.6 μs with 4 Ω load (square-wave 20 kHz, 12 Vpp)
Signal-to-noise-ratio : -98 dBA (ref. 6.325 V)
Intermodulation distortion : 0.00019 % with 10 watts on 4 Ω
Distortion factor (THD+N) :
0.007 % on 4 Ω load with 1 kHz and 10 watts
0.004 % on 8 Ω load with 1 kHz and 10 watts
Damping factor : approx. 670 on 8 Ω
Dimensions (H x W x D) : 145 x 482 x 440 mm / 5.7 x 19 x 17.3 inches
Weight : approx. 20 kg / 44 lbs
Formats
CD Formats : Red Book
Audio Formats : WAV, AIFF, FLAC, ALAC, OGG Vorbis, AAC, Windows Media-formatted content files, MP3
Internet Radio Provider : vTuner
Disc Compatability : CD, CD-R, CD-RW
User Control
Front Panel : Touch-sensitive eject and shutdown mode function
TV Monitor : 4:3 and 16:9 customisable TV interface USB touch screen compatible
Web Interface : PC and Mac internet browser compatible Adobe Flash user interface
AMX Creston : Installer-customisable reference apps available
Handheld : User interface app for iPhone and iPod Touch devices
Streaming and Ripping
USB : Scan and play from FAT and NTFS formatted memory sticks
Network Shares : Scan and play from music stored on a network share
Network Storage : Rip to external network storage for expanded music storage
CD Metadata : AllMusic.com online, FreeDB online and local database
StreamNet : 6 user streams to NaimNet and NetStreams systems
Power
Supply Voltage : 100V-230V; 50 or 60Hz
Dimensions (HxWxD) : 87 x 207 x 314 mm
Weight : 4.2 kg
Supplied with : External power supply
Formats
CD Formats Red Book
Disc Compatability CD, CD-R
User Control
Front Panel Seven button matrix
Handheld R-Com
Power
Power Supply Options 555PS, 2 x 555PS
Upgrades
Power Supply 555 PS
Other NAC 252, 552 PS, NAP 500, 500 PS
Dimensions (HxWxD) 114 x 432 x 314 mm
Weight 20.2 kg
Supplied with Hi-Line, R-Com, Burndy x 2, Remote Control NARCOM 4, Clamp 6
