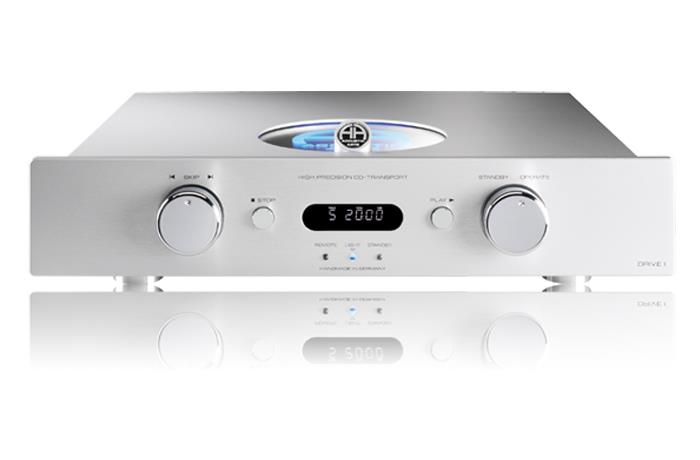

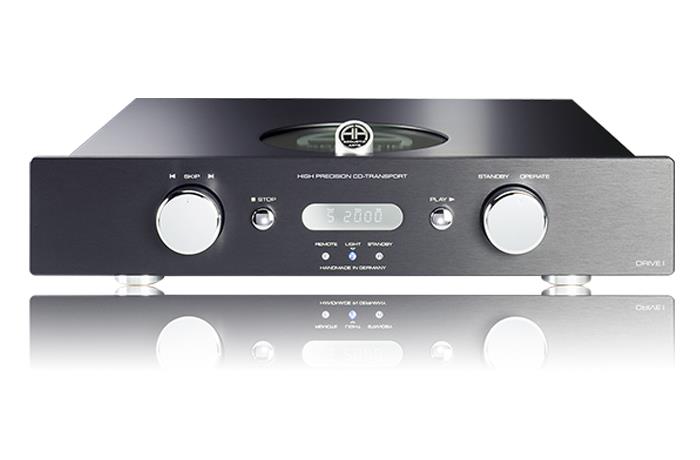

> Drive I - MK2
CD transport in top-loader design
High-class CD mechanism with die-cast metal frame and involved mechanical decoupling
Generously dimensioned magnetically shielded toroidal core transformer (75 VA)
Optimum smoothing thanks to 45,000 μF power supply capacity
4 separate, generously dimensioned power supply units for laser control,
digital signal processing, display control and display heating
CD positioning in drive using exceptionally precise clamper, whereby the
integrated magnet inside the clamper guarantees ideal pressing and
smooth running
Extremely fine digital output stage with the following-features :
- extra large power supply unit with voltage stabilisation
- jitter minimising output stage
- professionally designed balanced output (XLR) with HF-transformer
- professionally designed unbalanced output (RCA) with HF-transformer
- professionally designed unbalanced output (BNC) with HF-transformer
Premium quality relays (“Made in Germany”) and gold plated relays
Extremely stable, massive and resonance optimized housing, primarily made of aluminium; all chromed parts are made of massive brass
Shielded separate compartment in housing interior for CD mechanism,
mains power components, digital signal processing and display control
Drawer with indirect blue lighting for logo (lighting can be switched off)
CD mechanism : CD-Pro2LF with 3-beam laser and glass lens

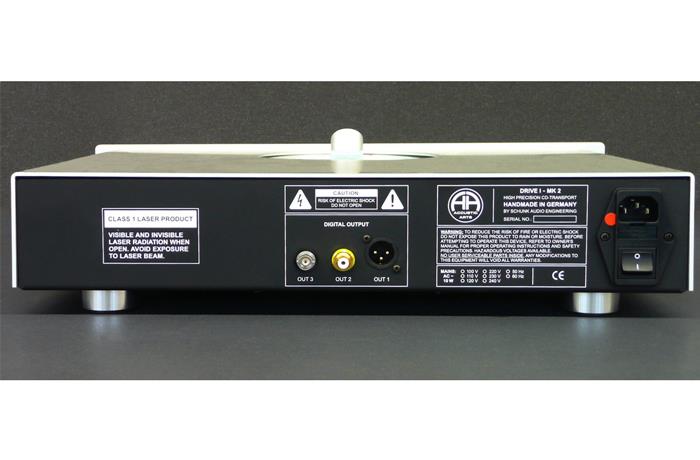

Digital outputs :
1 x AES/EBU; balanced – 110 Ω (XLR)
1 x S/P-DIF; unbalanced – 75 Ω (RCA)
1 x S/P-DIF; unbalanced – 75 Ω (BNC)
Output voltage:
AES/EBU : 3.1 Vpp on 110 Ω
S/P-DIF: 0.42 Vpp on 75 Ω
Dimensions (H x W x D) : 100 x 482 x 375 mm / 4.1 x 19 x 14.8 inches
Weight : approx. 11 kg / 24 lbs
