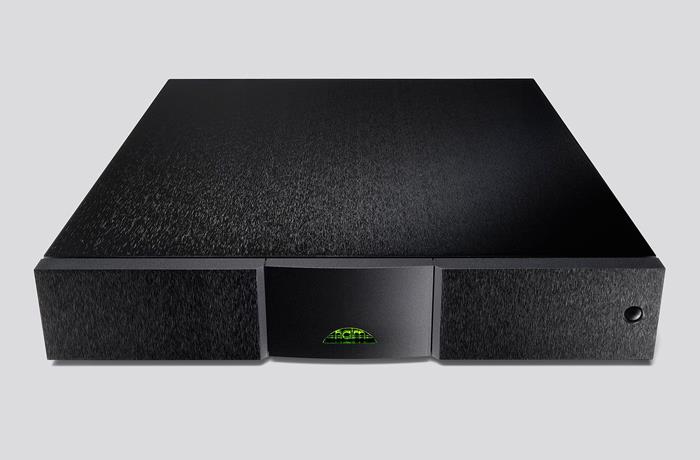

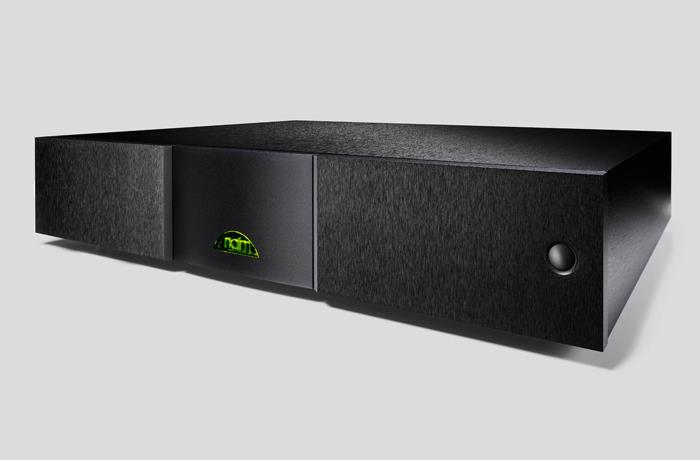

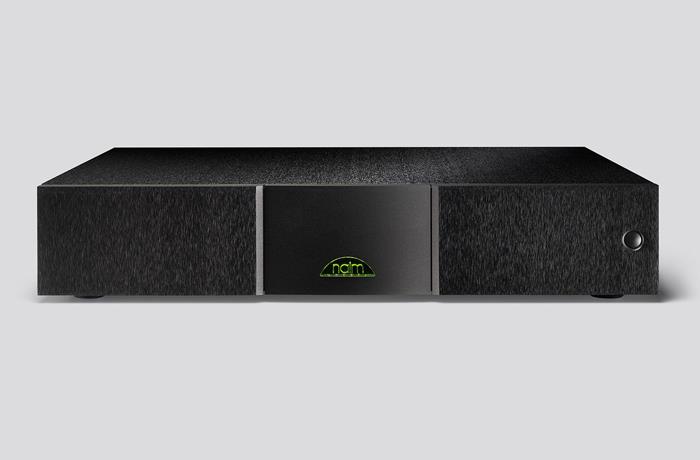

> 555 PS The Ultimate upgrade
Not everyone sees hi-fi as we do. For us, a smooth, stable, low-noise power supply isn’t just desirable: it’s fundamental to proper hi-fi performance. Nowhere is that belief more clearly exemplified than in our reference 555 PS, the best power supply in our portfolio.
Originally designed to partner our world-classCD555 CD player, the 555 PS can also be used with our NDS and NDX network players, our HDX hard disk player/ server and our DAC digital to analogue converter as well as the CDX2 CD player. Whatever Naim product it partners, the 555 PS will improve every aspect of your favourite music. Voices and instruments become clearer and more natural. Perceived dynamic range increases too, while timing – music’s fundamental sense of rhythm and accuracy – snaps into even greater focus.
• Seven regulated supply voltages, including a separate supply for the CD555 clock circuit
• Low-resonance case with isolating feet
• Massive transformer, 40 percent larger than that fitted to the XPS
• Supplied with Power-Line mains cable as standard
• All-new Discrete Regulator (DR) configuration, delivering Naim’s best-ever standards of stable, low-noise power
Technology & Craft
The 555 PS benefits from both our decades of experience and our relentless pursuit of superior sound quality. Its massive transformer, some 40 percent larger than that fitted to our XPS power supply, features five separate windings outputting to seven regulated supply voltages, including an output specifically intended for use with the clock circuitry of our CD555.
The 555 PS was updated in 2012 as a result of a two year project to develop a new discrete regulator (DR) for Naim power supplies. The new Naim DR now features, alongside improvements to the wire routing, mechanical decoupling and internal layout. These enhancements, developed through intensive listening tests, significantly raise performance and make music even more communicative and enjoyable.
A technical white paper on the Naim Discrete Regulator technology is available here.
Outputs

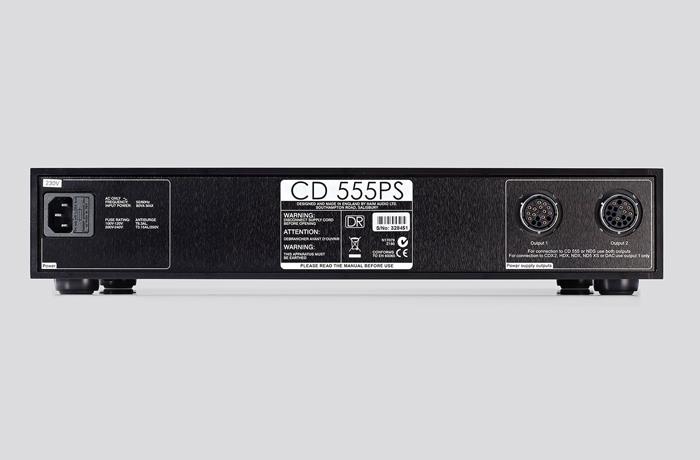

Power Outputs : ± 22V, ± 10V, 12V, 2 x 15V
Power
Mains Supply : 100V, 115V, 230V; 50 or 60Hz
Physical
Dimensions (HxWxD) : 87 x 432 x 314 mm
Weight : 15.7 kg
Shipping Dimensions : 240 x 590 x 500 mm
Supplied with : Power-Line
Front : Brushed and black anodised
Case : Brushed and black anodised
Formats
CD Formats : Red Book
Audio Formats : WAV, AIFF, FLAC, ALAC, OGG Vorbis, AAC, Windows Media-formatted content files, MP3
Internet Radio Provider : vTuner
Disc Compatability : CD, CD-R, CD-RW
User Control
Front Panel : Touch-sensitive eject and shutdown mode function
TV Monitor : 4:3 and 16:9 customisable TV interface USB touch screen compatible
Web Interface : PC and Mac internet browser compatible Adobe Flash user interface
AMX Creston : Installer-customisable reference apps available
Handheld : User interface app for iPhone and iPod Touch devices
Streaming and Ripping
USB : Scan and play from FAT and NTFS formatted memory sticks
Network Shares : Scan and play from music stored on a network share
Network Storage : Rip to external network storage for expanded music storage
CD Metadata : AllMusic.com online, FreeDB online and local database
StreamNet : 6 user streams to NaimNet and NetStreams systems
Power
Supply Voltage : 100V-230V; 50 or 60Hz
Dimensions (HxWxD) : 87 x 207 x 314 mm
Weight : 4.2 kg
Supplied with : External power supply
Formats
CD Formats Red Book
Disc Compatability CD, CD-R
User Control
Front Panel Seven button matrix
Handheld R-Com
Power
Power Supply Options 555PS, 2 x 555PS
Upgrades
Power Supply 555 PS
Other NAC 252, 552 PS, NAP 500, 500 PS
Dimensions (HxWxD) 114 x 432 x 314 mm
Weight 20.2 kg
Supplied with Hi-Line, R-Com, Burndy x 2, Remote Control NARCOM 4, Clamp 6
