Home > AUDIO SOURCE > CD Player > Accustic Arts
> CD Player I - MK3

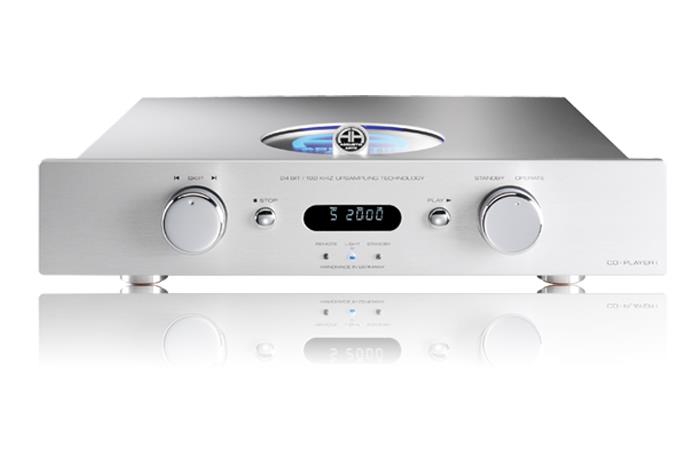

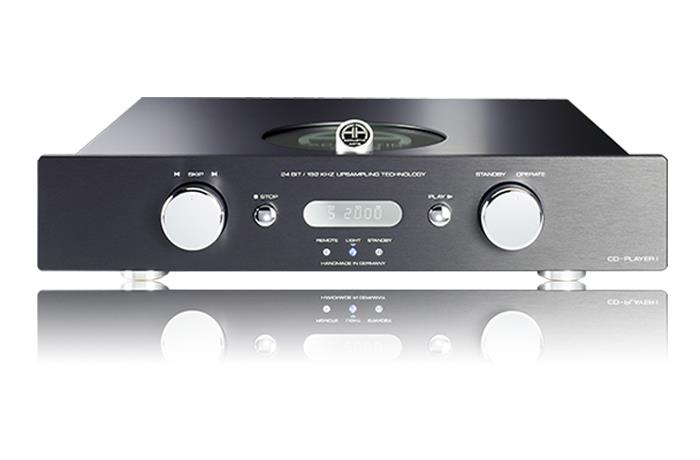

24 Bit / 192 kHz Upsampling CD player in top-loader design
High-class CD mechanism with die-cast metal frame and involved mechanical decoupling
Generously dimensioned, magnetically shielded toroidal core 100 VA
transformer
5 separate generously dimensioned power supply units for laser control,
digital signal processing, display control, display heating and D/A converter section; very high capacity (50,000 μF); Panasonic capacitors of high quality; ultra-fast diodes
CD positioning in drive using exceptionally precise puck, whereby the
integrated magnet inside the puck guarantees perfect pressing and
smooth running
Integrated, extremely fine D/A converter section with following features :
- 24 bit / 192 kHz multi-bit D/A converter
- extremely fine analog output stage with solely usage of 12 dB Butterworth-Filter
- generously dimensioned buffer section
- selected filter capacitors and metal film resistors
- digital filter of very high quality
Extremely fine digital output stage with extra large power supply unit and voltage stabilisation; jitter minimising digital output stage
Balanced and unbalanced analog output
3 different digital outputs with HF-transformers
Extremely stable and resonance optimized hosuing, primarily made of
aluminium; all chromed parts are made of massive brass
Shielded separate compartments inside housing for drive mechanism,
mains power components, digital signal processing, display control and
D/A converter section
CD mechanism : CD-Pro2LF with 3-beam laser and glass lense

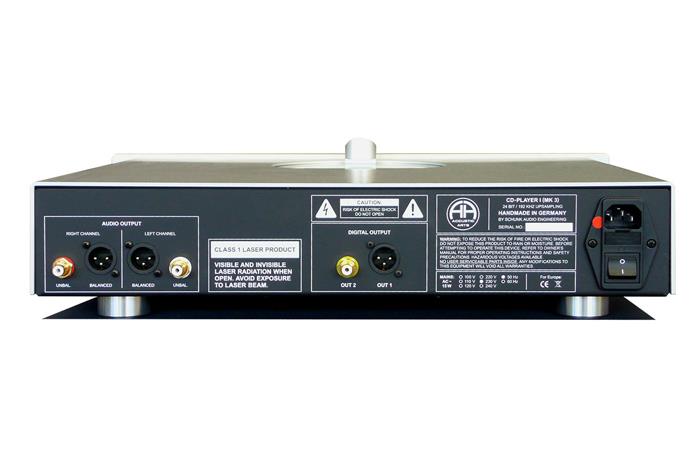

Analog outputs :
1 x balanced – 2 x 620 Ω (XLR)
1 x unbalanced – 100 Ω (RCA)
Digital outputs :
1 x AES/EBU; balanced – 110 Ω (XLR)
1 x S/P-DIF; unbalanced – 75 Ω (RCA)
D/A converter : 24 bit / 192 kHz upsampling technology
Distortion factor (THD+N) : 0.0016 %
Dynamic : 120 dB
Crosstalk : > 101 dB
Signal-to-noise-ratio : - 103 dB
Dimensions (H x W x D) : 110 x 482 x 375 mm / 4.1 x 19 x 14.8 inches
Weight : 12 kg (26 lbs)
