The All-rounder

The V 40 SE is a line level integrated amplifier with 2 x 40 W peak output power. He is a further development and direct descendant of the successful V 40 and V 50 amplifier models. His powerful, clear bass fundamentals and his captivating resolution in the high frequencies win much respect. His unique features lift the V 40 SE into the 21st Century, while his performance earned him the rare “Stereoplay Highlight” (issue 07-2009), a prestigious award bestowed by the German high-end audio magazine Stereoplay.

The V 40 SE output stage consists of two power pentodes (Type 6550) for each channel. Due to the BIAS Control and Monitoring System, the use of other pin-compatible output tubes is possible to match the amplifier to personal taste, or to benefit from new or improved tubes.

Like all OCTAVE Amps the, V 40 SE is based on the enhanced pentode configuration. This configuration ensures the absolute stability of the amplifier against the unstable impedance of the loudspeaker. Impedance mismatch is without consequence, and the V 40 SE is stable down to a 2 Ohm Load. An important contributor to this stability is the single impedance output transformer.

The V 40 SE is the perfect amp for speakers with an average efficiency rating.But not only is the low impedance capability an advantage, with his exceptional Signal-to-Noise ratio of –110dB / Full Power he is also an ideal partner for high efficiency loudspeakers.

In – and Outputs

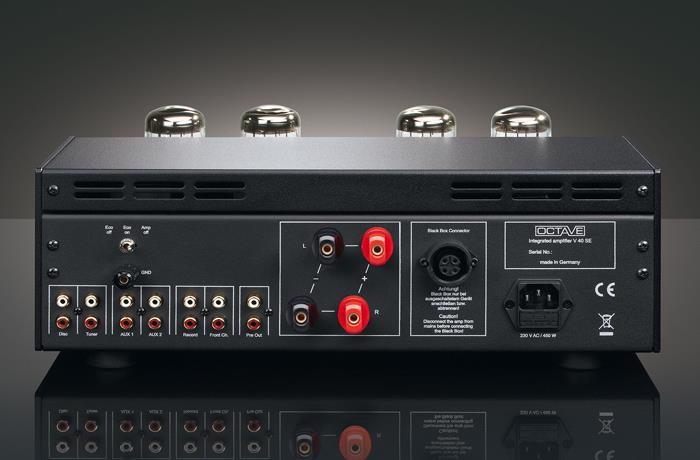

The V 40 SE features a total of five single-ended (RCA) inputs (including the Home Theatre Bypass input). Outputs included are one RCA Record output, one regulated Preamplifier output and one Loudspeaker output.

Black Box Connector
OCTAVE, with the Black Box technology, offers an upgrade path for optimizing the OCTAVE amplifier in respect to the speaker. This flexibility is a unique feature of the OCTAVE brand.

The dynamic and tonal stability of an amplifier is strongly dependent upon the stability and capacity of the power supply, therefore the Black Box and Super Black Box were developed as external upgrades to the OCTAVE amplifiers’ power supply storage capacitors by increasing their capacitance by a factor of 4 (Black Box or 10 (Super Black Box), respectively. This is a tremendous benefit if the speaker is difficult to drive. Loudspeaker efficiency is made less critical, while the amplifier is enabled to handle speakers with extremely low minimum impedances.

Ecomode
A forward looking feature of OCTAVE is the unique ECOMODE power saving electronic circuitry developed to reduce heat and unnecessary power consumption when the amplifier is switched on but not in use. This electronic system controls the power condition and reduces power consumption when the amplifier does not receive a signal for a period exceeding 10 minutes. In this “sleep” mode, the V 40 SE draws only 20 W idle current. Virtually no heat is produced by the unit, and the heater voltage and the high voltage for the power amplifier section are switched off. When a signal is detected by the V 40 SE, the Ecomode circuit will turn the amplifier back on, with a warm-up/start-up delay of approximately 30 seconds before the unit will operate. Ecomode also serves to increase the lifetime of the tubes, while having an added benefit of improved safety allowing the V 40 SE owner a level of security against any problems when leaving the unit powered on.

BIAS Adjustment
The Output stage of the V 40 SE operates in Class A/B, and therefore requires an adjustable BIAS regulation. The highly sophisticated yet extremely simple yet accurate BIAS calibration system is accessed on the front panel of the unit. It utilizes external precision bias trim pots and LED confirmation, allowing the user to readily monitor the output tubes and simply correct their bias individually at the front panel - without the need of a micrometer let alone any special knowledge or tools.

The correct BIAS is vital for the constant sound quality of the V 40 SE. Due to this facility there is no need for a technician to service the V 40 SE for changing or tubes or to check their condition. The precision of this user friendly system is within 0.5% accuracy.

Formats
CD Formats : Red Book
Audio Formats : WAV, AIFF, FLAC, ALAC, OGG Vorbis, AAC, Windows Media-formatted content files, MP3
Internet Radio Provider : vTuner
Disc Compatability : CD, CD-R, CD-RW

User Control
Front Panel : Touch-sensitive eject and shutdown mode function
TV Monitor : 4:3 and 16:9 customisable TV interface USB touch screen compatible
Web Interface : PC and Mac internet browser compatible Adobe Flash user interface
AMX Creston : Installer-customisable reference apps available
Handheld : User interface app for iPhone and iPod Touch devices

Streaming and Ripping
USB : Scan and play from FAT and NTFS formatted memory sticks
Network Shares : Scan and play from music stored on a network share
Network Storage : Rip to external network storage for expanded music storage
CD Metadata : AllMusic.com online, FreeDB online and local database
StreamNet : 6 user streams to NaimNet and NetStreams systems

Power
Supply Voltage : 100V-230V; 50 or 60Hz

Formats
CD Formats Red Book
Disc Compatability CD, CD-R

User Control
Front Panel Seven button matrix
Handheld R-Com

Power
Power Supply Options 555PS, 2 x 555PS

Upgrades
Power Supply 555 PS
Other NAC 252, 552 PS, NAP 500, 500 PS
