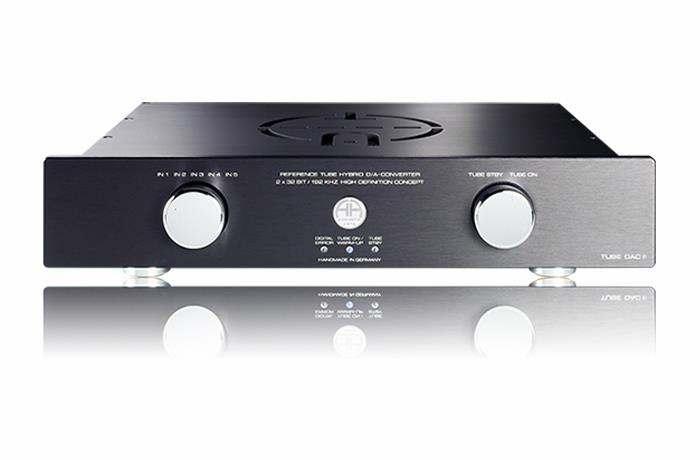

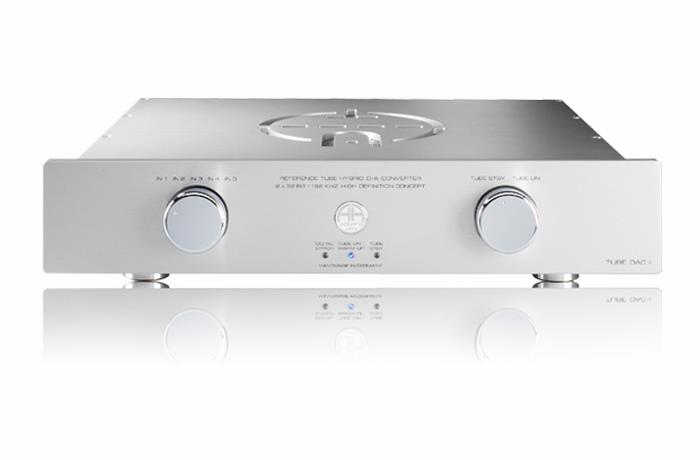

Audiophile reference D/A-converter with a so called “tube hybrid” concept
Special and unique 2 x 32 Bit / 192 kHz technology with simultaneous digital signal processing, separately for right and left channel
7 digital inputs:
- 3 inputs (2 x COAX, 1 x TOSLINK) optimized for HD playback up
to 192 kHz
- 1 asynchronous 24 bit / 192 kHz USB input for HD playback
- 3 inputs (XLR, COAX, BNC) optimized for lower frequencies up to 48 kHz
Extremely elaborate digital signal processing supported by an unique
32 bit Microcomputer
The 32 bit Microcomputer contains e.g.:
- High precision crystal oscillator
- 32 bit digital filter (including “de-emphasis” technology)
- 26 parallel working multiplier processors
Advantages of this “tube hybrid” technology:
- very high impedance
- very high bandwidth
- very low distortion factors and a perfect distortion spectrum
- “analog” and sound performance of outstanding precision
Easy exchange of tubes without any adjustments (“plug and play”)
Professional Class A output stage using technology derived from studio engineering
All used components are of outstanding quality (e.g. 10 pcs Burr Brown® OPA 627) and additionally selected
2 premium quality rotary switches with gold-plated silver contacts
2 magnetically shielded, encapsulated toroidal core transformers (“Made in Germany”) of premium quality for high output reserves
Very high power supply capacity (approx. 84,000 μF totally)
Extremely stable and resonance optimized housing, primarily made of massive aluminium plates; turning knobs made of massive and chromed brass

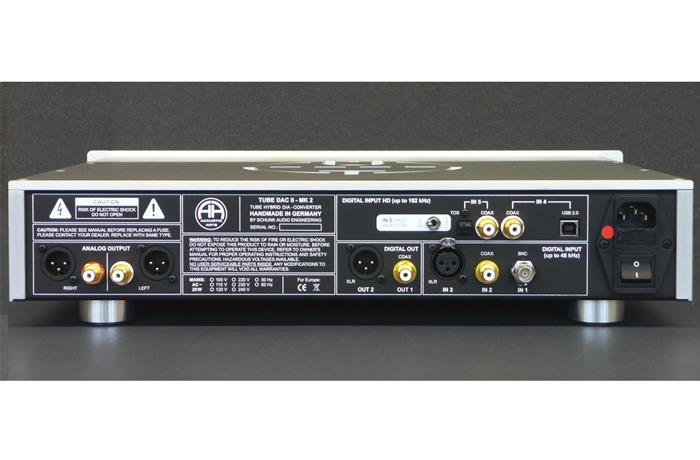

Digital inputs up to 192 kHz:
2 x S/P-DIF; unbalanced – 75 Ω (COAX)
1 x TOSLINK; optical
Digital inputs up to 96 kHz:
1 x USB 2.0
Digital inputs up to 48 kHz:
1 x AES/EBU; balanced – 110 Ω (XLR)
1 x S/P-DIF; unbalanced – 75 Ω (COAX)
1 x S/P-DIF; unbalanced – 75 Ω (BNC)
Digital outputs:
1 x S/P-DIF ; unbalanced - 75 Ω (COAX)
1 x AES/EBU; unbalanced – 110 Ω (XLR)
Analog outputs:
1 x balanced – 2 x 33 Ω (XLR)
1 x unbalanced – 33 Ω (COAX)
Input data formats:
16 to 24 bit word length /
32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz,
Transformer power :
1 x 100 VA / 1 x 50 VA
Distortion (THD+N):
0.003% with 24 bit; bandwidth 22Hz - 22 kHz
Crosstalk:
107 dB with digital 0 dB
Tube type:
12 AX 7 dual triode; military version
4-times selected and matched
Dimensions (H x W x D):
100 x 482 x 375 mm / 3.9 x 19 x 14.8 inches
Weight:
12 kg / 26.4 lbs.
