The devil is in the detail.

As the debut product in our reference 500 Seriesrange, the NAP 500 is a monumental expression of Naim amplifier technology. Its design was honed over six years of collaborative work with suppliers of specialist parts and each product takes days of dedicated assembly by our most skilled technicians in Salisbury. It’s this eye for detail, alongside its remarkable power, that allows the NAP 500 to bring your music into breath-taking focus.

• 140W per channel output into 8 ohms; capable of prolonged output into 2 ohms with no discernible impact on performance
• Bridged power amplifier configuration for maximised open and closed-loop speed, with ten stages of local regulation per channel

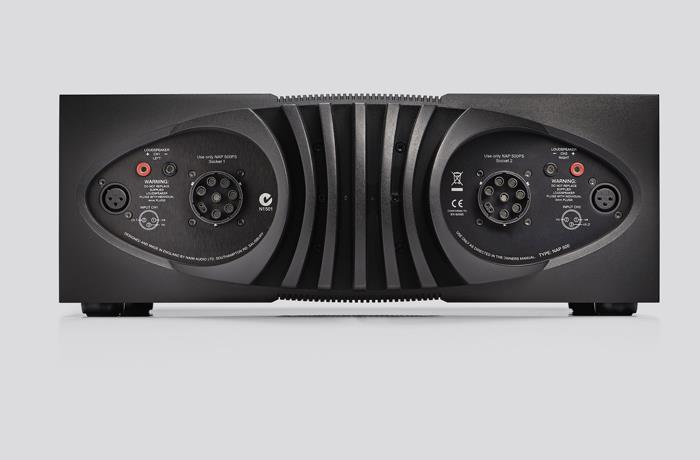

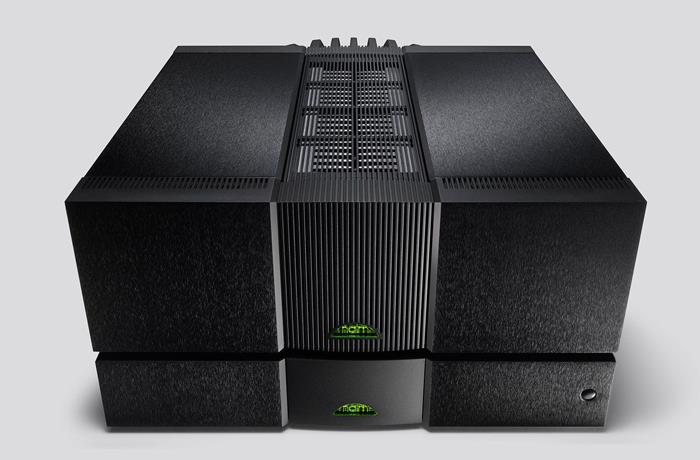

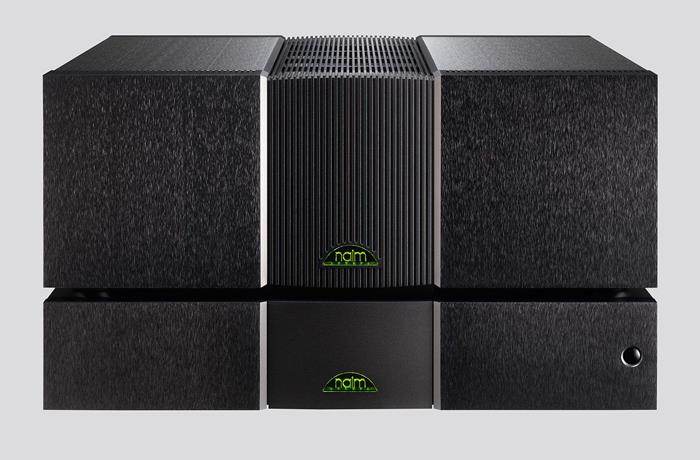

• Two-box configuration with 500 PS power supply for optimum rejection of electromagnetic interference
• 1,100VA toroidal transformer provides 12 raw DC supplies for the power amplifier

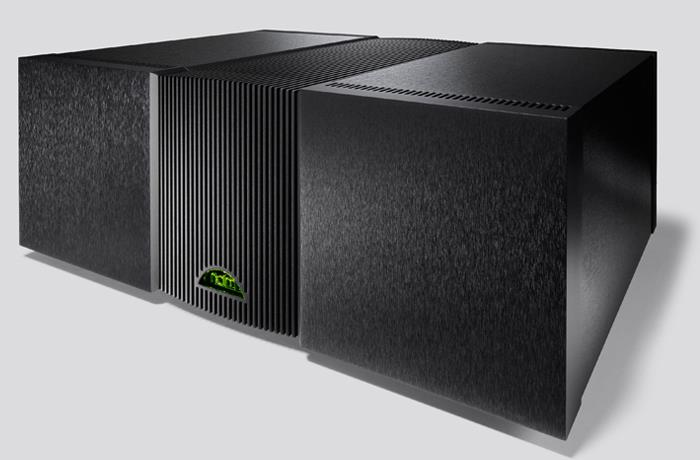

• 25kg brushed, black-anodised chassis with distinctive heatsink plus variable speed intelligent fan system for discreet extra cooling if required

Technology & Craft
The NAP 500 delivers 140W per channel into 8 ohms and is capable of prolonged output into 2 ohms with no discernible impact to performance. Its two box configuration is classic Naim, with the power supply completely removed to the separate 500 PS power supply for ultimate performance. Each channel of the NAP 500 includes ten stages of local regulation. To reduce interference from the mains supply further, the transformer and first stages of the power supply are in a separate enclosure, the 500 PS, which provides twelve raw D.C. supplies for the power amplifier.

A bridged configuration allow for maximised open and closed loop speed, less intrusive protection circuitry and reduced interaction between input and output signals as the very high drive currents to the loudspeaker do not flow through the system earth. The NAP 500 also features an advanced output transistor, the 007, specifically designed for the purpose through months of collaborative work with a specialist supplier. The circuit topology has been developed to maximise bandwidth and reduce distortion and power supply dependency. Also, special attention has been paid to reducing thermally-induced noise, an especially important consideration in power amplifiers.

Formats
CD Formats : Red Book
Audio Formats : WAV, AIFF, FLAC, ALAC, OGG Vorbis, AAC, Windows Media-formatted content files, MP3
Internet Radio Provider : vTuner
Disc Compatability : CD, CD-R, CD-RW

User Control
Front Panel : Touch-sensitive eject and shutdown mode function
TV Monitor : 4:3 and 16:9 customisable TV interface USB touch screen compatible
Web Interface : PC and Mac internet browser compatible Adobe Flash user interface
AMX Creston : Installer-customisable reference apps available
Handheld : User interface app for iPhone and iPod Touch devices

Streaming and Ripping
USB : Scan and play from FAT and NTFS formatted memory sticks
Network Shares : Scan and play from music stored on a network share
Network Storage : Rip to external network storage for expanded music storage
CD Metadata : AllMusic.com online, FreeDB online and local database
StreamNet : 6 user streams to NaimNet and NetStreams systems

Power
Supply Voltage : 100V-230V; 50 or 60Hz

Formats
CD Formats Red Book
Disc Compatability CD, CD-R

User Control
Front Panel Seven button matrix
Handheld R-Com

Power
Power Supply Options 555PS, 2 x 555PS

Upgrades
Power Supply 555 PS
Other NAC 252, 552 PS, NAP 500, 500 PS
