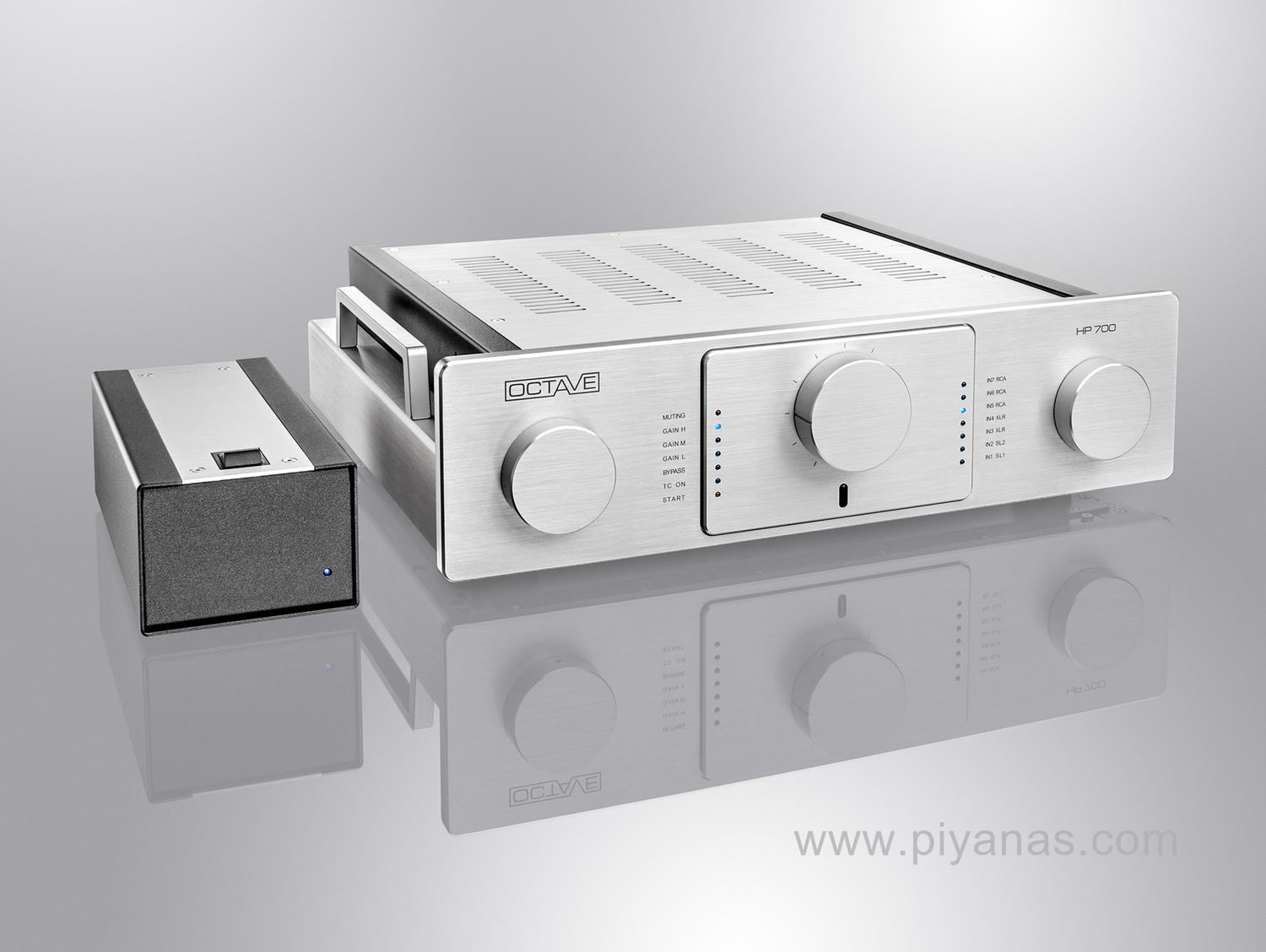

HP700 - sophisticated valve technology combined with intelligent modularity make this pre-amp future-proof. A valve pre-amp boasting innovative precision technology and a modular concept that allows the listener the freedom to build a system to cater for individual music tastes. Instead of being bound by the fixed audio and technical parameters of the equipment, listeners can adapt the technology of the HP700 to their own requirements and preferences. The result is THE sound - the optimal sound experience for the individual high-end audio system and the individual listener. THE NEXT STEP - A major step toward the ideal of all music lovers.
» The XLR output is transformer balanced and galvanically isolated.
» Soft start for heating, power supply and signal output; providing maximum tube life and trouble-free switching on and off.
» The gain of the Line-stage can be switched in three levels.
» External power supply with multiple shielded power transformer and integrated mains filter.
Basic Model : HP 500 SE Line, optional with Phono MM/MC
Special Edition : Limited Edition to 100 pieces

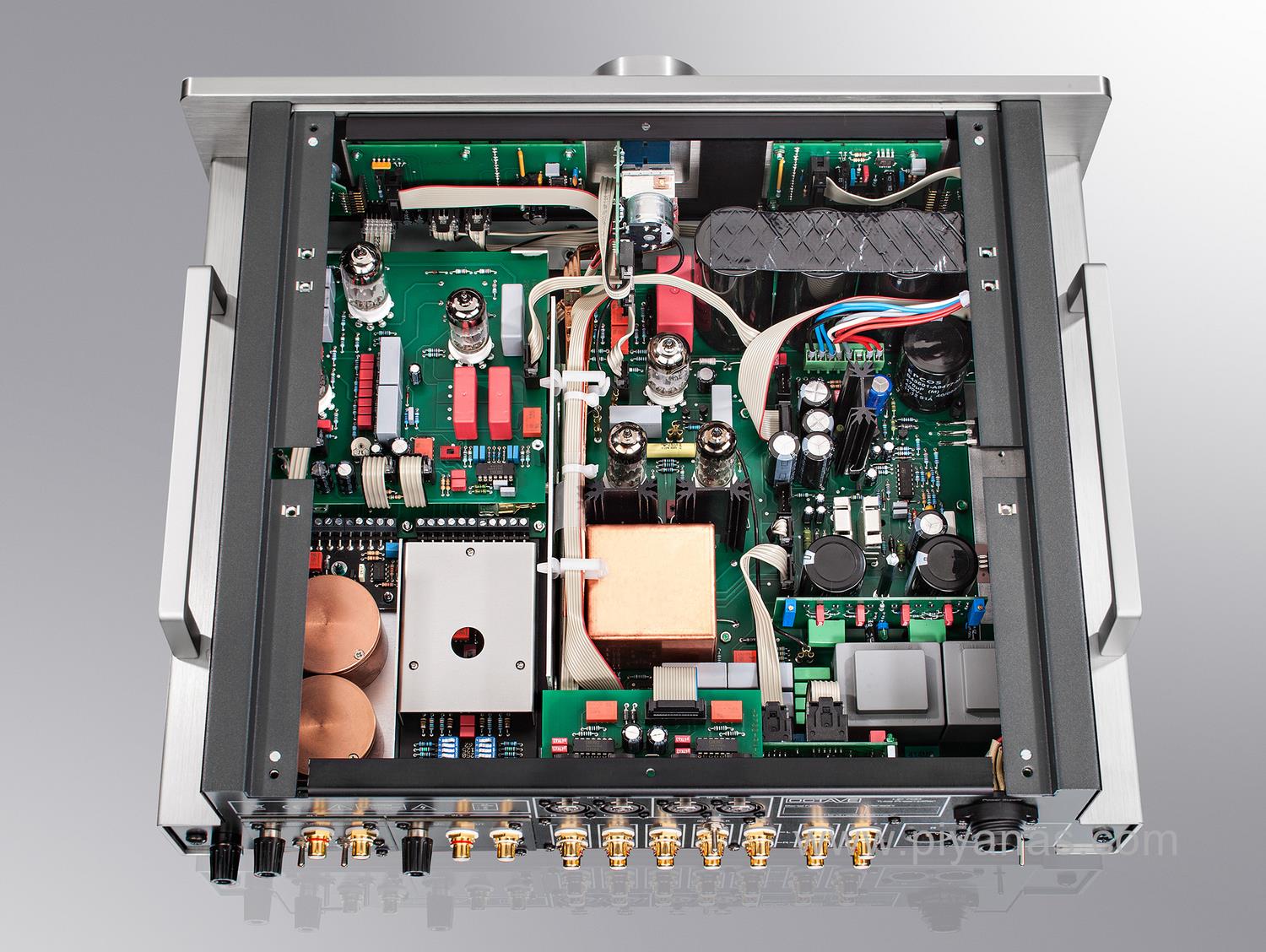

Tube Complement : Input-Stage: 1 x ECC 82; Output-Stage: 2 x EF 184 (Siemens D 3A)
Design : Aluminium silver or Aluminium black

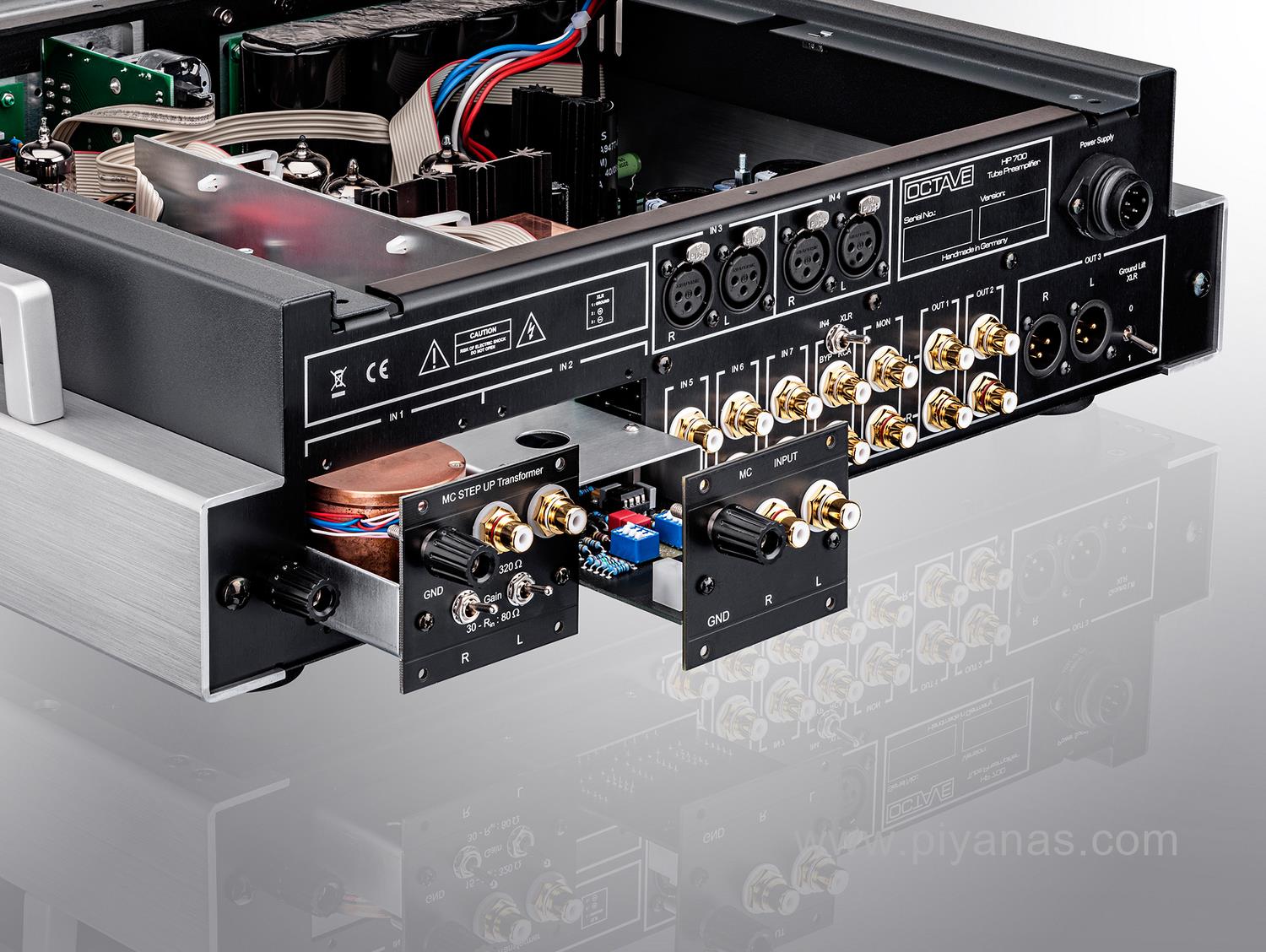

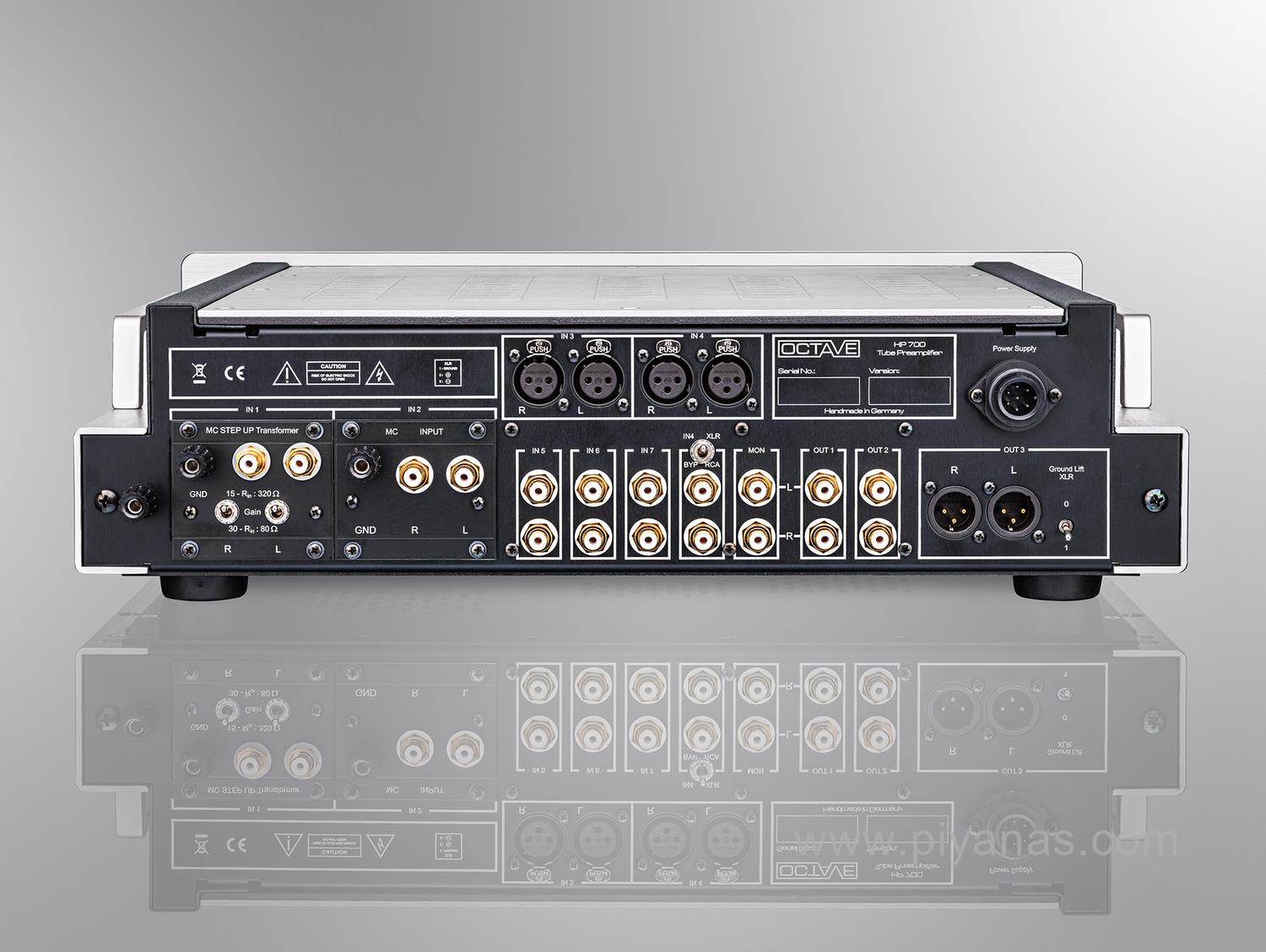

In- and outputs
Inputs
3 x RCA, 2 x XLR, 2 x arbitrary
1 x Bypass RCA (can be switched to IN4 -XLR)
Outputs 2 x RCA, 1 x XLR, 1 x Monitor / Tape Record (RCA)
XLR transmission ratio 0 dB
XLR pin assignment 1 = ground, 2 = positive, 3 = negative
Line stage
Output resistance 100 / 300 ohms RCA; 150 ohm XLR
Monitor Out output resistance 240 ohms
Maximum output voltage 12V
Gain factor Gain High 25 dB = 18,5
Gain factor Gain Med 18 dB = 7,8
Gain factor Gain Low 12 dB = 4
Signal-to-noise ratio Gain High: - 98 dB / 38 µV at 3 V output voltage Signal-to-noise ratio Gain Med: - 104 dB / 18µV at 3 V output voltage
Signal-to-noise ratio Gain Low: - 110 dB / 8 µV at 3 V output voltage
Equivalent noise-level 14 nV √Hz
Frequency response Gain High-RCA: 10 Hz – 200 kHz -0,7 dB, 0,7 Mhz -6 dB
Frequency response Gain Med-RCA:10 Hz – 200 kHz -0,3 dB, 1.3 MHz -6 dB
Frequency response Gain Low-RCA : 10 Hz – 200 kHz -0,2 dB, 2,1 MHz -6 dB
Frequency response XLR 10 Hz – 200 kHz -1,5 dB
Ramp-up time Gain Low 250 ns
Ramp-up time Gain Low 60 V/µs
Total harmonic distortion,Gain Low,Med, High:0.01% at 3V on 10 kOhm
Channel separation -90 dB / 1 kHz, Input short-circuited
Crosstalk between inputs - 80 dB / RCA, -95 dB XLR / 1kHz
Input resistance 50 kOhm
Channel matching via volume control 0,5 dB - 70 dB
Phono
RIAA equalization tolerance 0,3 dB / 15 Hz - 20 kHz
Corner frequency - subsonic filter 15 Hz / - 3 dB
Signal-to-noise ratio - 75 / - 84 dB / with IN 2 MC Input
Input sensitivity 250 µV / 600 µV / with IN 2 MC Input
Input sensitivity, gain and input resistance depend on input module
Gain MC Gain Low - Pre Out :Gain Low: 70 dB, Med: 77 dB, High: 83 dB
Gain MC Gain High- Pre Out :Gain Low: 79 dB, Med: 86 dB, High: 92 dB
General Facts
Power consumption 35 - 60 W
Weight preamplifier 10 kg
Weight power supply 3,8 kg
Supplied accessories Power calbe, remote control

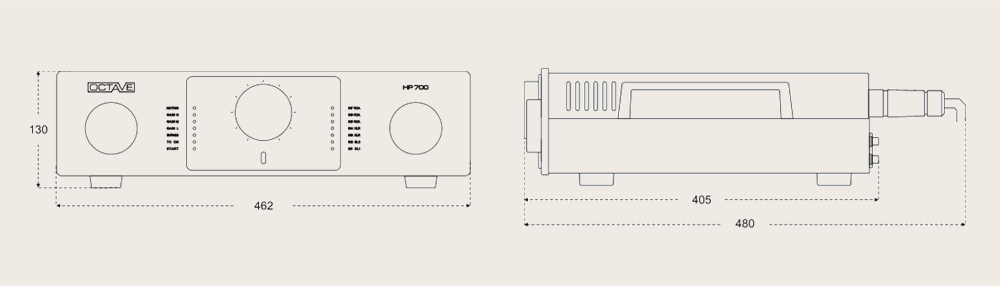

Dimensions of preamplifier (over-all): 462 x 130 x 480 mm (W x H x D)
Dimensions of power supply (over-all): 110 x 90 x 277 mm (W x H x D)
