Slimline and accessible high-end.

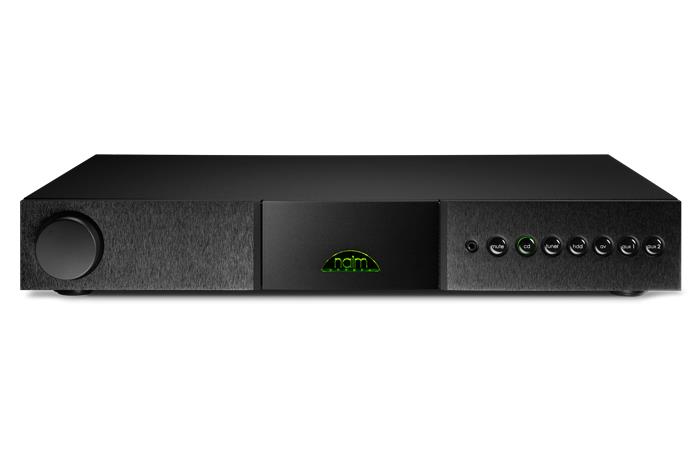

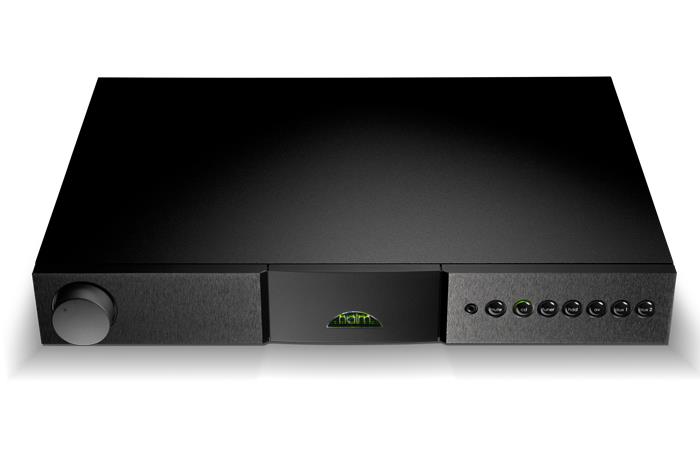

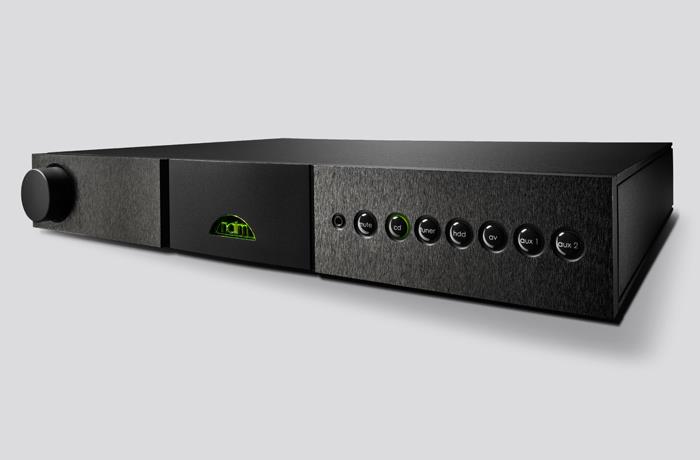

Our entry-level separate preamplifier, the NAC 152 XS provides all the transparency and musicality you’d expect from Naim, plus a long-term upgrade path to even better performance. The perfect alternative to an integrated amplifier, it’s an outstanding first step into the world of Naim ownership.

• Support for both DIN and RCA inputs to ease connection into a wide range of systems
• User configurable unity-gain AV input
• Full infrared remote control - RC5 input for wired remote control in complex installations
• Optional RS232 input/output for use in full home automation systems
• Can be powered from the preamp inputs of the NAP 155 XS or NAP 200 or external power supply (see Upgrade Path)

Technology & Craft
The NAC 152 XS, a replacement for the NAC 122x, is based on its larger brother the NAC 202 and features a hardwired motorised Alps volume control potentiometer delivering better performance and lower noise in use. The six DIN inputs are relay switched, improving performance. Much care in the design has been afforded to making the casework and PCB as low resonance as possible and to isolate the PCB from interference in its environment.

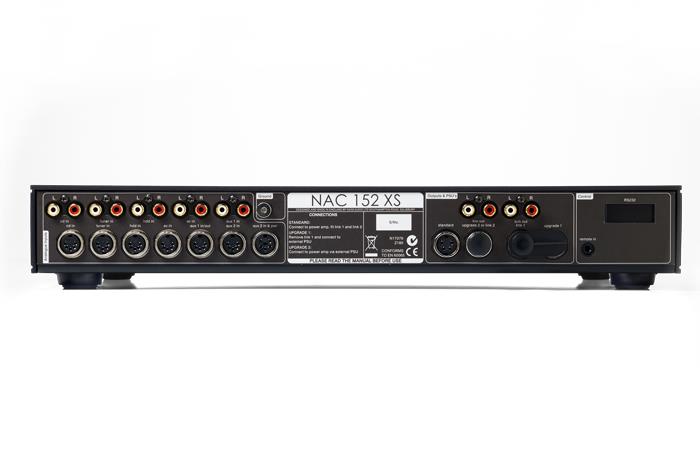

The NAC 152 XS features an additional output alongside the Naim standard DINs. This stereo output on two RCA sockets is optimised for connection to an active subwoofer and supports the growing use of 2.1 systems. Its rear panel layout is similar to the NAC 202 and hence is Fraim friendly. The NAC 152 XS can be powered from the preamp power outputs of the NAP 155 XS or NAP 200 or can be upgraded by powering it from either a FlatCap XS or HiCap power supply. One of the DIN inputs can supply power to a Naim StageLine outboard phono stage.

Formats
CD Formats : Red Book
Audio Formats : WAV, AIFF, FLAC, ALAC, OGG Vorbis, AAC, Windows Media-formatted content files, MP3
Internet Radio Provider : vTuner
Disc Compatability : CD, CD-R, CD-RW

User Control
Front Panel : Touch-sensitive eject and shutdown mode function
TV Monitor : 4:3 and 16:9 customisable TV interface USB touch screen compatible
Web Interface : PC and Mac internet browser compatible Adobe Flash user interface
AMX Creston : Installer-customisable reference apps available
Handheld : User interface app for iPhone and iPod Touch devices

Streaming and Ripping
USB : Scan and play from FAT and NTFS formatted memory sticks
Network Shares : Scan and play from music stored on a network share
Network Storage : Rip to external network storage for expanded music storage
CD Metadata : AllMusic.com online, FreeDB online and local database
StreamNet : 6 user streams to NaimNet and NetStreams systems

Power
Supply Voltage : 100V-230V; 50 or 60Hz

Formats
CD Formats Red Book
Disc Compatability CD, CD-R

User Control
Front Panel Seven button matrix
Handheld R-Com

Power
Power Supply Options 555PS, 2 x 555PS

Upgrades
Power Supply 555 PS
Other NAC 252, 552 PS, NAP 500, 500 PS
