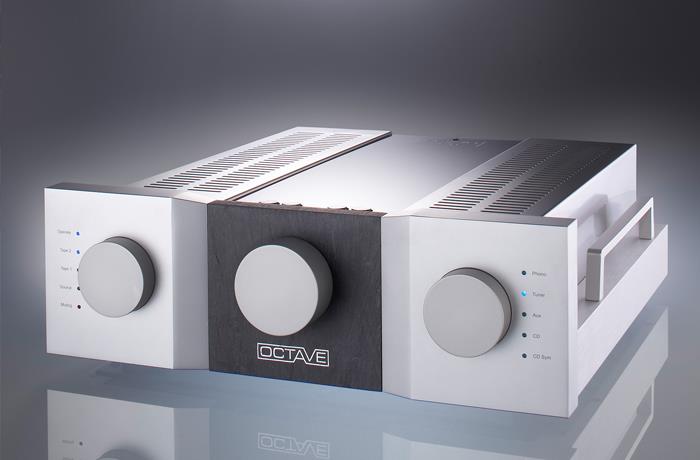

"...The Jubilee is a true work of art, providing a mastery of the music that is at the limit of what is possible in audio today..." This was the view expressed by Audio magazine when they reviewed the Jubilee preamplifier in June '98 and proclaimed it as their absolute reference. These highly-complimentary remarks attest to the commitment of the OCTAVE design team throughout the development of the Jubilee product. They also validate the conscientious selection of the finest components and the meticulous fine-tuning of the Jubilee’s sound quality. But you deserve to hear the Jubilee for yourself.
... spoils music-lovers.
Powerful dynamics, three-dimensional sound-staging and natural timbre – the Jubilee preamplifier sets the standard in all three disciplines.
... combines the best of two worlds.
Amplifier and precision balancing stages work with tubes. The reverse feedback free power buffer of the output stage puts its trust in semiconductors. The alliance of this hybrid technology answers all sound dreams.
... gets on with all „playmates“.

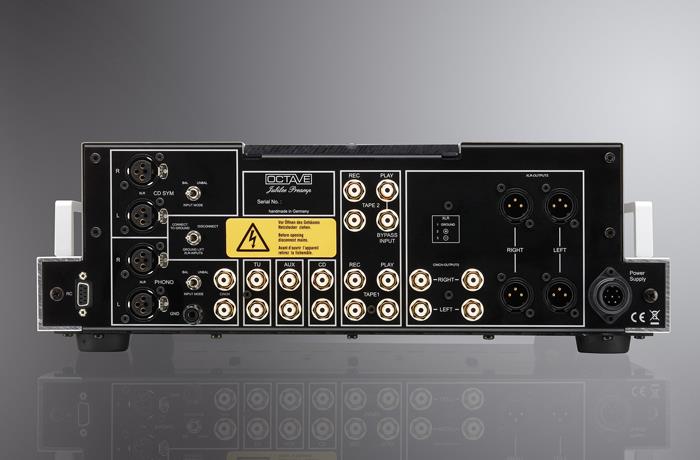

In- and outputs in single-ended (RCA) as well as balanced (XLR) configuration simplify the integration into existing hi-fi systems. At the extremely low impedance output, which is capable of high current delivery, any power amplifier can be operated – regardless of the interconnect cable’s length.
... trusts in exquisite components.
Due to a quintuple-shielded special transformer, magnetic stray fields do not exist within the external power supply. 100,000 µF load-store electrolytic capacitors provide an unshakeable stability against mains influences within the output stage. Series regulators ensure low noise heating and operating voltages and consequently ideal operating conditions for the tubes.
Design : Aluminium silver oder Aluminium black
Center Front : 20 mm black Granit or grey Slate
Fuse (Typ: 5 x 20 mm; europäische Norm) : 230 V 0,63 A; 115 V 1 A; 100 V 1,6 A
Frequency Response : 3 Hz – 500 kHz 1,5 dB
Total Harmonic Distortion : 0,001% an 3 Volt / 7,5 kOhm
Signal-to-Noise Ratio : 90 dB (Gain High) / 98 dB (Gain Low)
Maximum Output Level : 8 V
Channel Crosstalk : 65 dB 1 kHz
Crosstalk Input to Input : 86 dB 10 kHz
Crosstalk Tape Play – Record : 98 dB 10 kHz
Input Impedance : 100 kOhm
Output Impedance : 30 Ohm (Cinch); 2 x 30 Ohm XLR
Channel Parity Volumeadjuster : 0,5 dB (–70 dB)
Connections
Inputs : 6 x Cinch, 2 x XLR
Outputs : 2 x Cinch, 2 x XLR, 2 x Rec
Features : HT Bypass Option, Sym. Input Transformer
General Facts
Weight : Amplifier 17,2 kg; Power Supply 11,5 kg
Dimensions
Power Supply : 220 mm x 170 mm x 480 mm
Amplifier : 435 x 170 x 480 mm
Formats
CD Formats : Red Book
Audio Formats : WAV, AIFF, FLAC, ALAC, OGG Vorbis, AAC, Windows Media-formatted content files, MP3
Internet Radio Provider : vTuner
Disc Compatability : CD, CD-R, CD-RW
User Control
Front Panel : Touch-sensitive eject and shutdown mode function
TV Monitor : 4:3 and 16:9 customisable TV interface USB touch screen compatible
Web Interface : PC and Mac internet browser compatible Adobe Flash user interface
AMX Creston : Installer-customisable reference apps available
Handheld : User interface app for iPhone and iPod Touch devices
Streaming and Ripping
USB : Scan and play from FAT and NTFS formatted memory sticks
Network Shares : Scan and play from music stored on a network share
Network Storage : Rip to external network storage for expanded music storage
CD Metadata : AllMusic.com online, FreeDB online and local database
StreamNet : 6 user streams to NaimNet and NetStreams systems
Power
Supply Voltage : 100V-230V; 50 or 60Hz
Dimensions (HxWxD) : 87 x 207 x 314 mm
Weight : 4.2 kg
Supplied with : External power supply
Formats
CD Formats Red Book
Disc Compatability CD, CD-R
User Control
Front Panel Seven button matrix
Handheld R-Com
Power
Power Supply Options 555PS, 2 x 555PS
Upgrades
Power Supply 555 PS
Other NAC 252, 552 PS, NAP 500, 500 PS
Dimensions (HxWxD) 114 x 432 x 314 mm
Weight 20.2 kg
Supplied with Hi-Line, R-Com, Burndy x 2, Remote Control NARCOM 4, Clamp 6
