Accessible high-end power.
The ideal partner for our NAC 152 XS preamplifier or NAC-N 172 XS streaming preamplifier, the NAP 155 XS features a substantial, custom-designed toroidal transformer with separate transformer windings for each output channel. It delivers 60 watts per channel (into 8 ohms) and will become the musical engine of a modern or traditional hi-fi system, whether the source is a digital stream, CD or vinyl.
• 60W per channel output into 8 ohms
• Internal power supply to allow direct connection of a NAC 152 XS, NAC 202 or NAC 282 preamplifier
• Custom-designed toroidal transformer with separate transformer windings for each output channel
• The NAP 155 XS is flexible enough to be used in most types of systems, both passive and active but retains an unwavering focus on performance.
• The heart of the amplifier circuit is a version of the world class NAP 500 with a substantial and very quiet power supply using a custom-designed and manufactured toroidal transformer. Improvements over its predecessor, the NAP 150, include: a new toroidal transformer for improved regulation; separate windings for each channel and preamp; and an up-rated preamp power supply to improve the performance of the preamp.
Audio Inputs
Analogue Input : 1 x 4-pin DIN
Input Impedance : 18kΩ
Audio Outputs
Gain : +29dB
Frequency Response : -3dB at 3Hz - 50kHz
Power Outputs : Naim pre-amplifier
Minimum Load Impedance : 2Ω
THD : 0.013%
THD : 0.013%
Signal-to-Noise Ratio : 100dB
Speaker Outputs

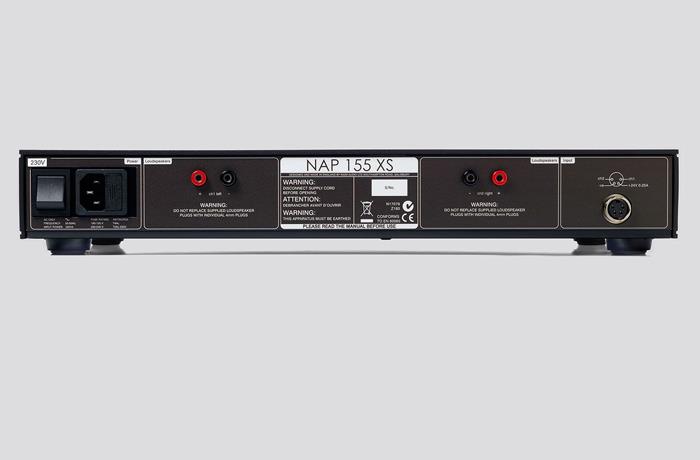

Speaker Outputs : L & R, 4mm “banana” sockets
Power Output : 60W/channel, 8Ω
Transient : 260VA
Power
Mains Supply : 100V, 115V, 230V; 50 or 60Hz
Power Consumption (quiescent) : 16VA
Power Consumption : 330VA (max.)
Physical
Dimensions (HxWxD) : 70 x 432 x 301 mm
Weight : 7.9 kg
Shipping Dimensions : 200 x 590 x 500 mm
Shipping Weight : 10.5 kg
Supplied with : SNAIC
Formats
CD Formats : Red Book
Audio Formats : WAV, AIFF, FLAC, ALAC, OGG Vorbis, AAC, Windows Media-formatted content files, MP3
Internet Radio Provider : vTuner
Disc Compatability : CD, CD-R, CD-RW
User Control
Front Panel : Touch-sensitive eject and shutdown mode function
TV Monitor : 4:3 and 16:9 customisable TV interface USB touch screen compatible
Web Interface : PC and Mac internet browser compatible Adobe Flash user interface
AMX Creston : Installer-customisable reference apps available
Handheld : User interface app for iPhone and iPod Touch devices
Streaming and Ripping
USB : Scan and play from FAT and NTFS formatted memory sticks
Network Shares : Scan and play from music stored on a network share
Network Storage : Rip to external network storage for expanded music storage
CD Metadata : AllMusic.com online, FreeDB online and local database
StreamNet : 6 user streams to NaimNet and NetStreams systems
Power
Supply Voltage : 100V-230V; 50 or 60Hz
Dimensions (HxWxD) : 87 x 207 x 314 mm
Weight : 4.2 kg
Supplied with : External power supply
Formats
CD Formats Red Book
Disc Compatability CD, CD-R
User Control
Front Panel Seven button matrix
Handheld R-Com
Power
Power Supply Options 555PS, 2 x 555PS
Upgrades
Power Supply 555 PS
Other NAC 252, 552 PS, NAP 500, 500 PS
Dimensions (HxWxD) 114 x 432 x 314 mm
Weight 20.2 kg
Supplied with Hi-Line, R-Com, Burndy x 2, Remote Control NARCOM 4, Clamp 6
