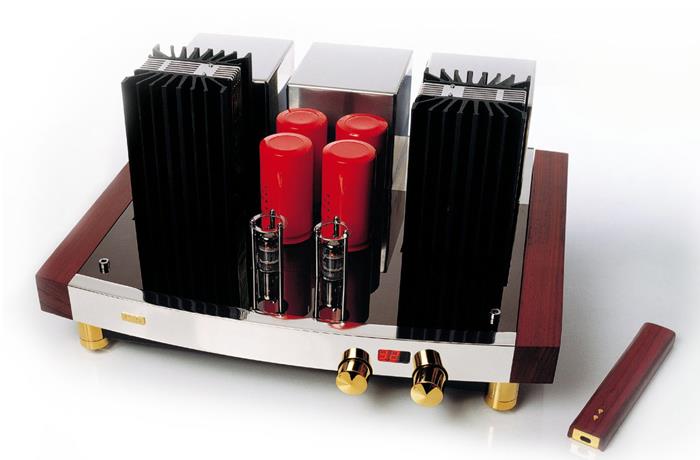

TT RR (Reference Remote)

Integrated Amp. 2 x 35 W @ 8 Ohm, Purely resistive optical / Relays remote controlled Volume, Balanced Inputs, Remote controlled Input Selector

The first appearance of Pathos on the hi-fi scene did not go unnoticed: a short time after its debut, the T.T. has achieved a solid position among those very few components which contribute to writing the history of High-Fidelity. International audio reviews welcomed the first product from Pathos with front page covers, highly enthusiastic comments and numerous prestigious awards.

When listening to music reproduced through a T.T. amplifier, everyone can experience the honest difference in terms of musicality, transparency, tonal colour and absence of listening fatigue. The reason why this difference can he consistently and immediately appreciated is because the T.T. is different. This difference is named INPOL®, the exclusive worldwide patented pure Class A feedback-free circuitry which has been claimed to represent the most important innovation in musical amplification of the last years.

Highly selected components, pure silver Pathos signal wiring, and craftsmanship of the highest level are the most appropriate compliments to the T.T. reference sound. Through the years, the TT has been constantly perfected and updated in order to keep this living legend alive. Today the TT is availible in its original volume configuration - a purely reststive 24-step manual volume control - and also in a remote controlled version - an optical device which drives a battery of read relays (vacuum packed, thorium contacts), which in turn drive a network of precision resistors (1% metal layer) in 1dB steps.

Be it in the Americas or the Old World, the T.T. has achieved a level of respect across the globe that one can only describe as unanimous, whether in terms of originality of industrial design, uniqueness in circuit topology, or ultimately, sincerity in sonic reproduction. Simply put, the T.T. exists for those who believe music is food for the soul.

Type : integrated amplifier operating in pure class A according to INPOL® circuitry
Power output : 2 x 35W @ 8 Ohm
Feedback : absent
Frequency response : 13 Hz ÷ 78 kHz ± 0,5 dB
THD : < 0, 5% up to the maximum power
Signal/noise ratio : 90 dB
Slew rate : 38 volt/µs
Input impedance : 100 kOhms
Absorption at rest : 240 W

Formats
CD Formats : Red Book
Audio Formats : WAV, AIFF, FLAC, ALAC, OGG Vorbis, AAC, Windows Media-formatted content files, MP3
Internet Radio Provider : vTuner
Disc Compatability : CD, CD-R, CD-RW

User Control
Front Panel : Touch-sensitive eject and shutdown mode function
TV Monitor : 4:3 and 16:9 customisable TV interface USB touch screen compatible
Web Interface : PC and Mac internet browser compatible Adobe Flash user interface
AMX Creston : Installer-customisable reference apps available
Handheld : User interface app for iPhone and iPod Touch devices

Streaming and Ripping
USB : Scan and play from FAT and NTFS formatted memory sticks
Network Shares : Scan and play from music stored on a network share
Network Storage : Rip to external network storage for expanded music storage
CD Metadata : AllMusic.com online, FreeDB online and local database
StreamNet : 6 user streams to NaimNet and NetStreams systems

Power
Supply Voltage : 100V-230V; 50 or 60Hz

Physical
Dimensions (HxWxD) : 87 x 207 x 314 mm
Weight : 4.2 kg
Supplied with : External power supply

Formats
CD Formats Red Book
Disc Compatability CD, CD-R

User Control
Front Panel Seven button matrix
Handheld R-Com

Power
Power Supply Options 555PS, 2 x 555PS

Upgrades
Power Supply 555 PS
Other NAC 252, 552 PS, NAP 500, 500 PS

Physical
Dimensions (HxWxD) 114 x 432 x 314 mm
Weight 20.2 kg
Supplied with Hi-Line, R-Com, Burndy x 2, Remote Control NARCOM 4, Clamp 6
