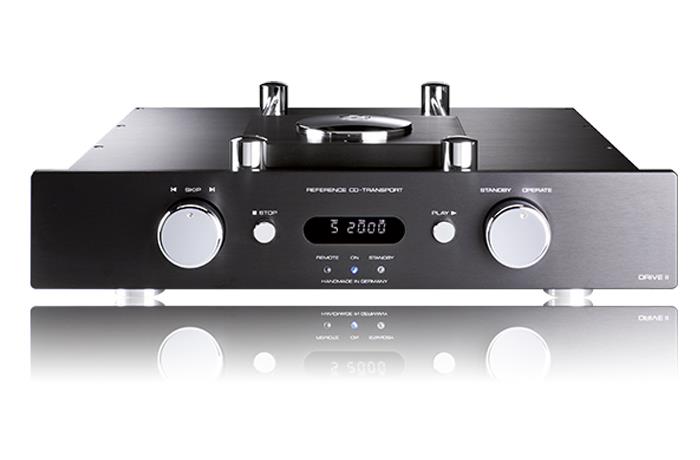

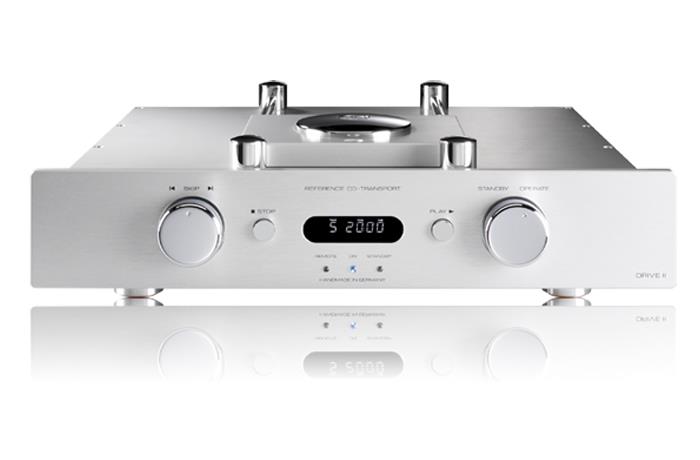

Audiophile reference CD transport in top-loader design
High-Class CD mechanism (CD-Pro2LF) with heavy die-cast metal frame and involved mechanical decoupling, embedded in a massive aluminium housing (subchassis construction principle)
2 generously dimensioned and magnetically shielded toroidal core transformers of premium quality (”Made in Germany“)
Integrated, especially designed ACCUSTIC ARTS® line filter for perfect and extremely clean power supply (line filter switchable) Separate generously dimensioned power supply units for laser control, digital signal processing, display control and display heating
CD positioning in drive using exceptionally precise clamper, whereby
the integrated magnet inside the clamper guarantees ideal pressing
and smooth running
Polarity switch for correct phase of the mains voltage
Extremely fine digital output stage with the following features:
- separate transformer
- separate extra large power supply unit with voltage stabilisation
- output stage with extremely low jitter

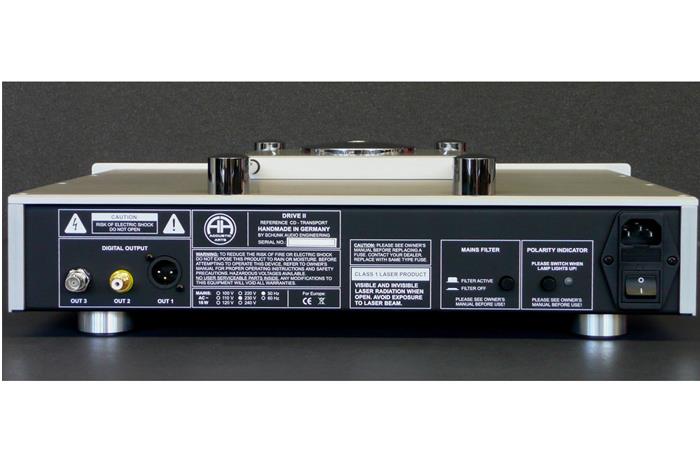

- 3 professionally designed digital outputs with HF-transformer (1 x XLR, 1 x RCA, 1 x BNC)
Very high power supply capacity (61,000 μF) for perfect power supply
All used components and parts are selected and of highest quality
Extremely stable, massive and resonance optimized housing, primarily made of 10 mm thick aluminium plates, ultra stable and acoustically damped top load cover; all chromed parts are made of massive brass
2 premium quality rotary switches (”Made in Germany“) with goldplatedsilver contacts
CD mechanism : CD-Pro2LF with 3-beam laser and glass lens
Digital outputs :
1 x AES/EBU; balanced – 110 Ω (XLR)
1 x S/P-DIF; unbalanced – 75 Ω (RCA)
1 x S/P-DIF; unbalanced – 75 Ω (BNC)
Output voltage:
AES/EBU : 3.1 Vpp on 110 Ω
S/P-DIF: 0.42 Vpp on 75 Ω
Dimensions (H x W x D) : 130 x 482 x 375 mm / 5.1 x 19 x 14.8 inches
Weight : 18 kg / 40 lbs
