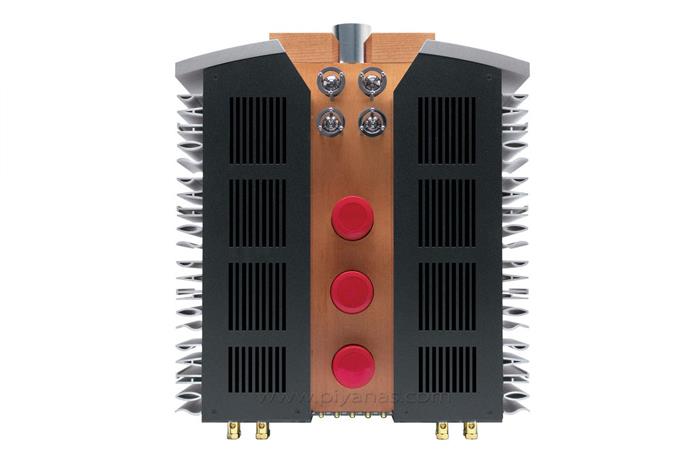

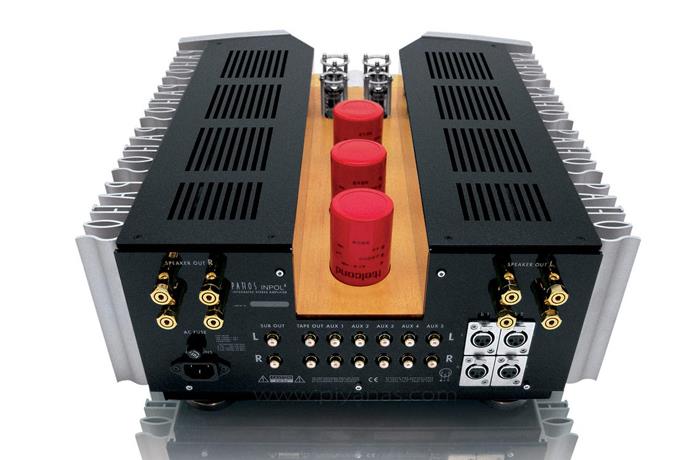

InPol 2

Stereo Integrated Amp. 2 x 45 W @ 8 Ohm, Pure Class A, Double INPOL Technology, Fully Balance, Purely resistive relays remote controlled Volume

'This amp will give your music the kiss of life, lending recordings a quality that'll have you grinning from ear to ear... the Inpol 2 delivers a sincere sense of music being 'alive'... mixing solid state and valve technology to stunning effect' (What Hi-Fi magazine)

is the latest creation from Pathos, so-called because in the design Pathos presents the 2nd generation of their proprietary INPOL® technology. It is also a completely balanced dual-mono configuration – easily recognized by the styling. INPOL®, which carries a worldwide patent and gave birth to the multi-award winning products TT and InPower, has undergone advanced evolution. The INPOL2 is a unique amplifier in many aspects and its sound quality will simply astound.

According to the principles of the INPOL technology, the INPOL2 is constructed as a hybrid with CLASS A amplification (45watt) and an impressively wide bandwidth in a feedback-free layout. The preamplifier is entirely tube-based, balanced and optimized for feeding the mosfet output stage to maximum effect. Tubes are still the best components for amplifying the signal voltage, in order to preserve the harmonic integrity of the input signal

inpol-2    A solid state stage is used to provide high current at low impedance, in order to drive any loudspeaker accurately. The power stage is entirely balanced by the use of two INPOL circuits that are driven in opposite phase to each other, for virtual cancellation of distortion without using any feedback. Large coils are used as energy reserves in order to deliver the current in a fast, effective and precise manner.

Pathos engineers have chosen yet another "unorthodox approach" in the power supply - PHYSICS™ (Pathos Hybrid Stabilised Independent Current Supply) The pre-amplification section is operated by a power supply, dedicated for the tubes, which needs low current. The output stage is fed by a switch mode power supply. The reason for this choice is the output stage’s great demand of current at low load impedance as-well as high efficiency and independency of variations on the mains. The two power supplies are completely separated and carefully shielded.

The overall sound of the INPOL2 is no less than stunning in its detail and involvement and is as close to the top of the range InPower and InControl as possible. The musical, rich and warm sound from the tubes combined with the pace and dynamic from the mosfets results in excellent performance. It is easy to discern that this is an INPOL amplifier due to the absence of listening fatigue combined with transparency, presence, the enormous soundstage and the capability of reproducing all instruments realistically – all the factors of true high fidelity.

Type : integreted stereo amplifier based on INPOL techonology, operating in pure class A
Power output : 2 x 45 W @ 8 Ohm
Feedback : absent
Frequency response : 10Hz-80KHz +/- 0.5 dB
THD : < 0.05%
S/N ratio : >90 dB
Input impedance : 100 K Ohm
Input : 7 line, of which 5 RCA and 2 balanced XLR
Output : 1 RCA tape out, 1 pre-amplifier subwoofer, 2 speaker outputs pre channel

Formats
CD Formats : Red Book
Audio Formats : WAV, AIFF, FLAC, ALAC, OGG Vorbis, AAC, Windows Media-formatted content files, MP3
Internet Radio Provider : vTuner
Disc Compatability : CD, CD-R, CD-RW

User Control
Front Panel : Touch-sensitive eject and shutdown mode function
TV Monitor : 4:3 and 16:9 customisable TV interface USB touch screen compatible
Web Interface : PC and Mac internet browser compatible Adobe Flash user interface
AMX Creston : Installer-customisable reference apps available
Handheld : User interface app for iPhone and iPod Touch devices

Streaming and Ripping
USB : Scan and play from FAT and NTFS formatted memory sticks
Network Shares : Scan and play from music stored on a network share
Network Storage : Rip to external network storage for expanded music storage
CD Metadata : AllMusic.com online, FreeDB online and local database
StreamNet : 6 user streams to NaimNet and NetStreams systems

Power
Supply Voltage : 100V-230V; 50 or 60Hz

Physical
Dimensions (HxWxD) : 87 x 207 x 314 mm
Weight : 4.2 kg
Supplied with : External power supply

Formats
CD Formats Red Book
Disc Compatability CD, CD-R

User Control
Front Panel Seven button matrix
Handheld R-Com

Power
Power Supply Options 555PS, 2 x 555PS

Upgrades
Power Supply 555 PS
Other NAC 252, 552 PS, NAP 500, 500 PS

Physical
Dimensions (HxWxD) 114 x 432 x 314 mm
Weight 20.2 kg
Supplied with Hi-Line, R-Com, Burndy x 2, Remote Control NARCOM 4, Clamp 6
